Product Information

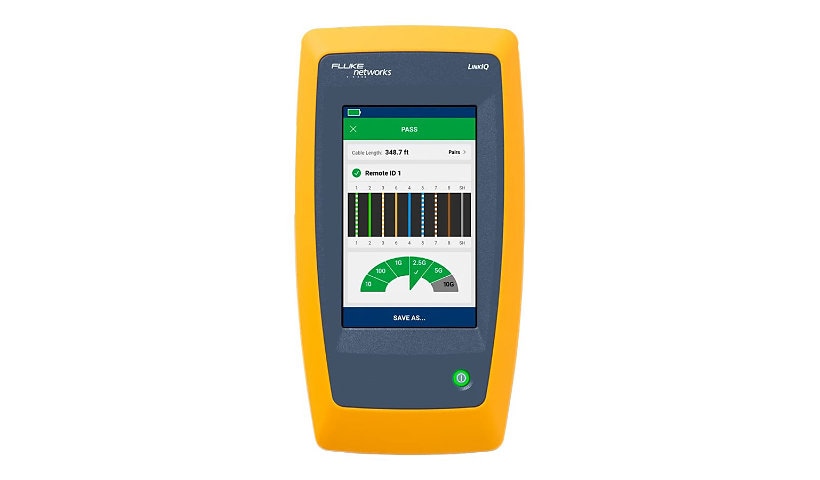

The Fluke LinkIQ LIQ-KIT includes the LinkIQ Cable+Network Tester, an IntelliTone Pro 200 Probe and 7 ID remotes. LinkIQ measures cable performance up to 10 Gig using frequency based tests, shows a wiremap, pair length and distance to fault over runs up to 305 m and finds split pairs. Nearest switch diagnostics check switch, VLAN and PoE settings without a second device, plus analog and digital toning, port blink and remote office locators. It has an 800 x 480 gesture touchscreen and a rechargeable battery for up to 8 hours, and comes with RJ-45 patch and RJ-45 to RJ-11 cables, a charger and a case.
Key Features
- LinkIQ tester kit
- Cable tests up to 10 Gig
- Nearest switch diagnostics
- In-depth PoE testing
- IntelliTone Pro 200 Probe
- 7 ID remotes
Product Information
Tests, Tools and Measurements: Bandwidth, Length, Pair length, PoE, Tests for split pairs, Toning, Wiremap
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke LinkIQ
Model: LIQ-KIT
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: Analog and Digital Toning, Cable tone generator, Cisco Discovery Protocol (CDP), Fast Link Pulses (FLP), Link Layer Discovery Protocol (LLDP), Port Blink, Remote Office Locators, Tests up to 305 m, USB-C connectivity, VLAN support
Features: Touchscreen
Connectivity
Connectors: RJ-45
Power
Battery Chemistry: Lithium ion
Battery Voltage: 3.6 volt
Output Voltage: 15 V
Battery Run Time (Up To): 8 hour(s)
Input Voltage: 100-240 V
Technical Information
Cable Types: STP, UTP
Color Support: Color
Display Resolution: 800 x 480 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft
Vibration Acceleration (Operating): 2 gram
Vibration Frequency Range (Operating): 5-500 Hz
Dimensions and Weight
Height: 8.5 inch
Width: 4.5 inch
Weight: 22.01 ounce
Included Items
Kit Content: 7 x ID remotes, IntelliTone Pro 200 Probe, LinkIQ Cable+Network Tester
Included Accessories: Carrying case, Power charger
Cables: RJ-45 to RJ-11 modular adapter, RJ-45 to RJ-45 patch cable
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
