Product Information

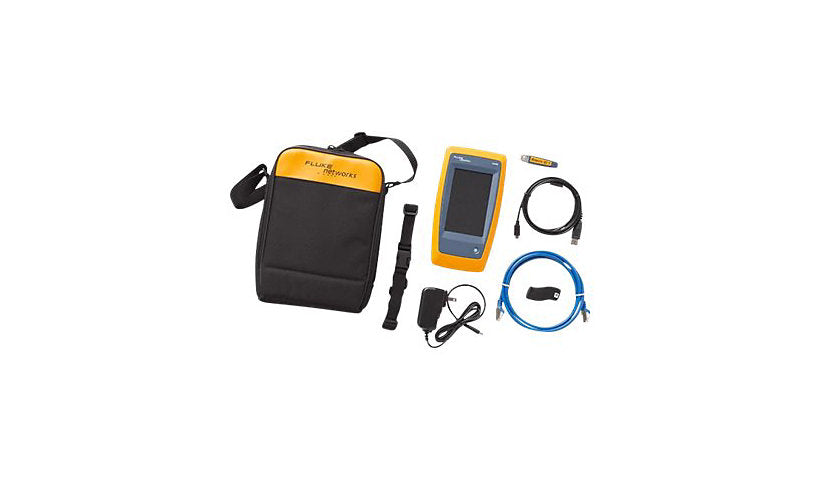

The Fluke LinkIQ LIQ-KIT-IE is an industrial Ethernet version of the LinkIQ kit. The tester gives wiremap and distance to fault from frequency based tests and runs nearest switch diagnostics for link speed, status, PoE, CDP, LLDP and 802.1x, with toning, port blink and LinkWare PC reporting. The kit includes a multi-connector adapter with magnetic strap, an IntelliTone probe, RJ-45 remote IDs 1 to 7, two RJ-45 patch cords, RJ-45 to M12 and RJ-45 to M8 cords, an RJ-45 to RJ-11 adapter, USB-C cable, charger, hanging strap and case. It has an 800 x 480 touchscreen and up to 8 hours of battery.
Key Features
- Industrial Ethernet kit
- RJ-45 to M12 and M8 cords
- Nearest switch diagnostics
- PoE and link speed
- Remote IDs 1 to 7
- IntelliTone probe
Product Information
Tests, Tools and Measurements: Link speed, Link status, PoE
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke LinkIQ
Model: LIQ-KIT-IE
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: 802.1x authentication, Analog and Digital Toning, Cisco Discovery Protocol (CDP), Fast Link Pulses (FLP), Link Layer Discovery Protocol (LLDP), Port Blink, Remote Office Locators
Features: Touchscreen
Connectivity
Connectors: 24 pin USB type C, RJ-45
Power
Battery Chemistry: Lithium ion
Battery Voltage: 3.6 volt
Output Voltage: 15 V
Battery Run Time (Up To): 8 hour(s)
Input Voltage: 100-240 V
Technical Information
Software: LinkWare PC
Color Support: Color
Display Resolution: 800 x 480 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Physical Characteristics
Drop Specification: 3.3 ft
Vibration Acceleration (Operating): 2 gram
Vibration Frequency Range (Operating): 5-500 Hz
Dimensions and Weight
Height: 8.5 inch
Width: 4.5 inch
Weight: 22.01 ounce
Included Items
Kit Content: Intellitone Probe, LinkIQ Cable + Network Tester with Multi-Connector Adapter with magnetic strap, RJ45 Remote-IDs #1-7
Included Accessories: Carrying case, Charging cable, Hanging strap with remote ID holder
Cables: 2 x RJ-45 to RJ-45 patch cable, RJ-45 to M12 patch cable, RJ-45 to M8 patch cable, RJ-45 to RJ-11 modular adapter, USB to USB-C cable
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at
