Product Information

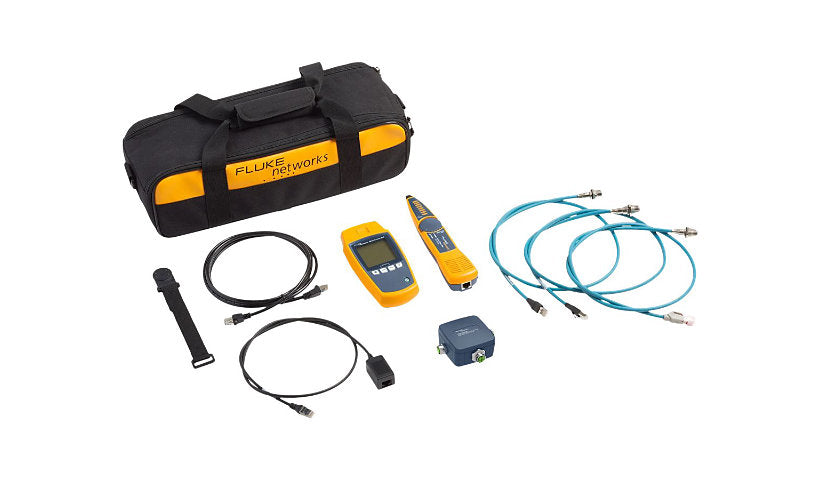

The Fluke MS-POE-IE-KIT is the MicroScanner PoE industrial Ethernet professional kit. The verifier checks RJ-45, M12X, M12D and M8D cables in seconds, graphing opens, shorts and crossed wires, and tells you whether a fault comes from too little power or the powered device. It also reports PoE and UPoE, link speed, port discovery, length and distance to fault over runs up to 460 m. The kit adds an IntelliTone Pro 200 Probe, a remote ID kit, a wiremap adapter, RJ-45 to M12D, M12X and M8D cords, RJ-45 patch and extension cords and a carrying case. It runs up to 20 hours on 2 AA batteries.
Key Features
- Industrial Ethernet kit
- RJ-45, M12, M8 testing
- PoE and UPoE checks
- Tests up to 460 m
- IntelliTone Pro 200 Probe
- Up to 20 hours on AA
Product Information
Tests, Tools and Measurements: Distance to fault, Identifies remote ID locators, Length, Link speed, PoE, Port discovery, Tests for miswires, Tests for shorts, Tests for split pairs, Toning, UPoE, Wiremap
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke MicroScanner PoE
Model: Industrial Ethernet Professional Kit
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Backlight
Features: Tests up to 460 m
Features: Backlight
Connectivity
Connectors: RJ-11, RJ-45
Power
Batteries Required: 2
Supported Battery Size: AA
Battery Chemistry: Lithium polymer / nickel cadmium / nickel metal hydride / alkaline
Battery Run Time (Up To): 20 hour(s)
Technical Information
Cable Types: FTP, SSTP, UTP
Color Support: Monochrome
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft
Max Altitude Operating: 13120 ft
Vibration Acceleration (Operating): 2 gram
Vibration Frequency Range (Operating): 5-500 Hz
Dimensions and Weight
Height: 6.4 inch
Width: 3 inch
Depth: 1.4 inch
Weight: 10.58 ounce
Included Items
Kit Content: IntelliTone Pro 200 Probe, MicroScanner PoE Cable Verifier, Remote ID kit
Included Accessories: Carrying case, Wiremap adapter
Cables: RJ-45 to M12D patch cable, RJ-45 to M12X patch cable, RJ-45 to M8D patch cable, RJ-45 to RJ-45 extension cable, RJ-45 to RJ-45 patch cable
Certifications and Listing
Compliant Standards: IEC 61010-1 3rd Edition, IEC 61326-1, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
