Product Information

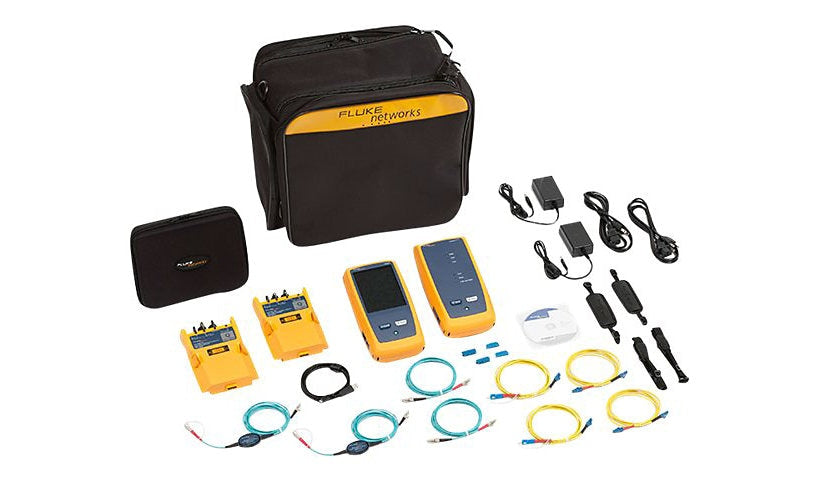

The Fluke Networks CertiFiber Pro CFP2-100-Q-NW is a quad optical loss test set with a Versiv mainframe, a Versiv remote and two CertiFiber Pro quad OLTS modules for multimode and singlemode fiber at 850, 1300, 1310 and 1550 nm. It measures loss on two fibers at two wavelengths in about six seconds, and the Taptive interface guides reference setup to prevent negative loss errors. Encircled flux compliance comes standard and gives Tier 1 and Tier 2 reporting when paired with an OptiFiber Pro module. The kit includes multimode 50 µm encircled flux and singlemode SC/LC test reference cord kits, LC adapters, AC adapters, straps and cases, with a 1 year calibration period.
Key Features
- Quad OLTS kit
- MM and SM fiber
- Loss test in 6 seconds
- Encircled flux compliant
- Versiv main and remote
- TRC kits included
Product Information
Media: Fiber
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks CertiFiber Pro
Model: CFP2-100-Q-NW
Product Type: Optical loss test set
Packaged Quantity: 1
Network and Communication
Features: 1-year calibration period
Connectivity
Connectors: LC
Technical Information
Fiber Type: Multi-mode, Single-mode
Fiber Wavelength: 1300 nm, 1310 nm, 1550 nm, 850 nm
Software: Versiv Open Source Software
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90%
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft
Max Altitude Operating: 13120 ft
Vibration Acceleration (Operating): 2 gram
Vibration Frequency Range (Operating): 5-500 Hz
Included Items
Kit Content: 2 x CertiFiber Pro Quad OLTS Module, Versiv Mainframe, Versiv Remote
Included Accessories: 2 x AC power adapters, 2 x hand straps, 2 x interchangeable LC adapters, 2 x shoulder straps, Carrying case, SC/LC EF-Compliant MM TRC Kit 50 µm, SC/LC SM TRC Kit, TRC Carry Case
Certifications and Listing
Compliant Standards: IEC 61280-4-1
