Product Information

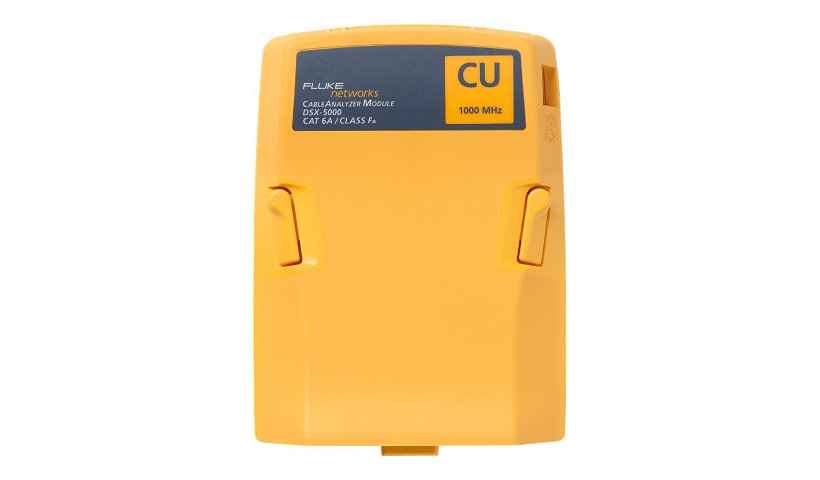

The Fluke Networks DSX-5000 MOD is a CableAnalyzer module for the Versiv platform that certifies Cat 3 to Cat 6A and Class FA copper to ISO/IEC 11801 and TIA-568-C.2, with draft IEC Level V accuracy. It measures NEXT, insertion loss, return loss, ACR-F, power sum, delay skew, propagation delay, DC loop resistance, length and wiremap, and works with the ProjX management system. It has a 1 year warranty and 1 year calibration period.
Key Features
- DSX-5000 module
- Cat 3 to Cat 6A
- Class FA support
- IEC Level V accuracy
- ProjX job management
- 1 year warranty
Product Information
Tests, Tools and Measurements: Attenuation-to-crosstalk ratio far end, DC loop resistance, Delay skew between pair, Insertion loss (attenuation), Length, Near-end crosstalk, Power sum, Propagation delay, Return loss, Wiremap
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks
Model: DSX-5000 CableAnalyzer
Product Type: Network tester module
Packaged Quantity: 1
Network and Communication
Features: 1-year calibration period, 2-way autotest, Headset connection, USB connectivity
Connectivity
Connectors: RJ-45
Technical Information
Cable Types: CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a
Test Standards: ISO/IEC 11801, TIA-568-C.2
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 122 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft
Max Altitude Operating: 13120 ft
Certifications and Listing
Compliant Standards: EN 61010-1 1st Edition Amendments 1, 2, EN 61326-1
Warranty
Manufacturer Limited Warranty: 1 year
