Product Information

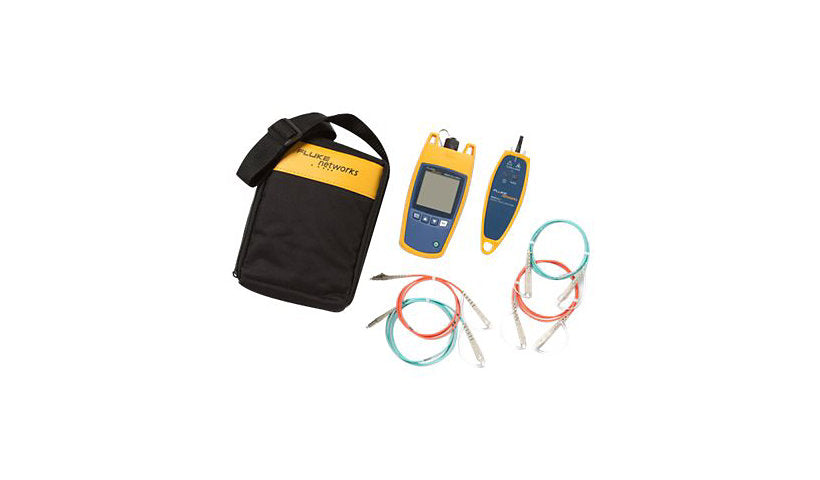

The Fluke Networks Fiber QuickMap kit (FQM-100-M-VFL) finds high loss connections, breaks and the end of multimode fiber at 850 nm, up to 1.5 km. It gives more detail than a simple visual fault locator and is quicker and simpler than an OTDR. The kit adds a VisiFault visual fault locator with 2.5 mm universal adapter, a screw-on SC/UPC adapter, a 2 m (6.6 ft) SC/UPC patch cord, 2 AA batteries, guides and a carrying case. It has a backlit LCD, auto off after 5 minutes, a 3.3 ft drop rating and a 1 year limited warranty.
Key Features
- Multimode 850 nm
- Finds loss and breaks
- Tests up to 1.5 km
- VisiFault VFL included
- SC/UPC patch cord
- 1 year warranty
Product Information
Tests, Tools and Measurements: Distance to opens, Fiber breaks detection, Length, Optical loss, Optical power meter
Media: Fiber
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks
Model: Fiber QuickMap Kit
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Backlight
Features: Automatic power off after 5 minutes, Rugged, Tests up to 1.5 km
Features: Backlight
Connectivity
Connectors: SC
Power
Batteries Required: 2
Supported Battery Size: AA
Batteries Included: 2
Battery Chemistry: Alkaline
Technical Information
Fiber Type: Multi-mode
Fiber Wavelength: 850 nm
Color Support: Monochrome
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft
Max Altitude Operating: 9840 ft
Dimensions and Weight
Height: 6.9 inch
Width: 3.1 inch
Depth: 1.5 inch
Weight: 12.34 ounce
Included Items
Kit Content: Main Unit, Visual fault locator
Included Accessories: Carrying case, Interchangeable SC/UPC adapter
Cables: 1 x SC/UPC to SC/UPC patch cable - 6.6 ft
Certifications and Listing
Compliant Standards: CSA, EN 61326-1, FCC Class A
Warranty
Manufacturer Limited Warranty: 1 year
