Product Information

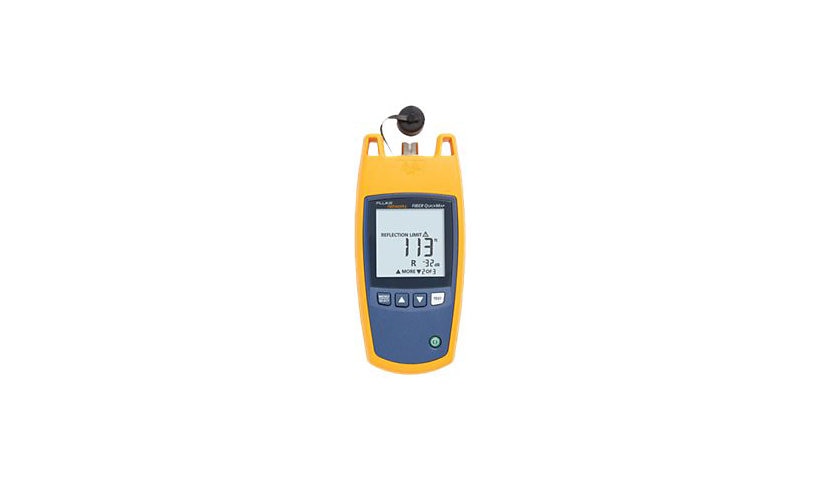

The Fluke Networks FQM-SFP-M kit pairs the Fiber QuickMap multimode fault locator with a SimpliFiber Pro optical power meter and SC adapter. QuickMap runs at 850 nm and locates the fiber end and any high loss connection, giving more than a visual fault locator and working faster than an OTDR. The kit includes a screw-on SC adapter, a 2 m SC/UPC patch cord, guides, 2 AA batteries and a carrying case. It has a backlit LCD and survives a 3.3 ft drop to concrete.
Key Features
- Fiber QuickMap locator
- SimpliFiber Pro meter
- Multimode 850 nm
- Finds high loss points
- SC/UPC patch cord
- Carrying case
Product Information
Tests, Tools and Measurements: Bit Error testing, Distance to fault, Fiber breaks detection, Optical loss
Media: Fiber
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks
Model: Fiber QuickMap Kit
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Backlight
Features: Rugged
Features: Backlight
Connectivity
Connectors: SC
Power
Batteries Required: 2
Supported Battery Size: AA
Batteries Included: 2
Battery Chemistry: Alkaline
Technical Information
Fiber Type: Multi-mode
Fiber Wavelength: 850 nm
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft to concrete
Vibration Frequency Range (Operating): 5-500 Hz
Dimensions and Weight
Height: 6.9 inch
Width: 3.1 inch
Depth: 1.5 inch
Weight: 12.34 ounce
Included Items
Kit Content: SimpliFiber Pro optical power meter
Included Accessories: Carrying case
Cables: 1 x SC/UPC to SC/UPC patch cable - 6.6 ft
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 61010-1-04, EN 61326-1, FCC Class A, RoHS
