Product Information

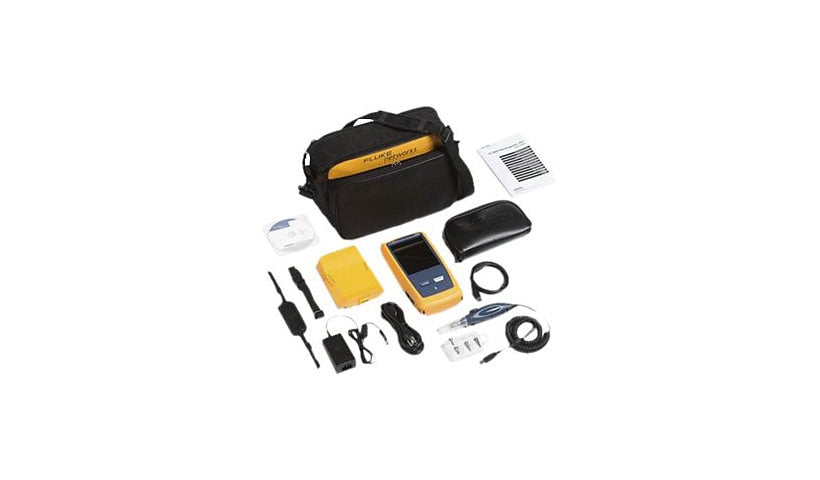

The Fluke Networks FI2-7000 is a fiber end face inspection kit with a Versiv mainframe, the FI-7000 FiberInspector Pro and a USB fiber inspection video probe. Dirty end faces cause insertion loss and back reflection, so both sides of every connection should be inspected before, during and after certification. It handles FC, LC, MPO and SC connections, has dual band Wi-Fi and runs up to 11 hours on a lithium ion battery. It includes 4 probe tips (LC, FC/SC bulkhead, 1.25 mm and 2.5 mm universal), an AC adapter, a blank module, a USB cable and a shoulder strap.
Key Features
- Fiber end face inspection
- FI-7000 on Versiv
- USB video probe
- FC, LC, MPO, SC
- 4 probe tips included
- Up to 11 hour battery
Product Information
Media: Fiber
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks FiberInspector Pro
Model: FI2-7000
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features: Wi-Fi IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Connectivity
Connectors: FC, LC, MPO, SC
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Battery Run Time (Up To): 11 hour(s)
Technical Information
Software: Versiv Open Source Software
Display Screen: LCD
Min Operating Temperature: -0.4 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Min Storage Temperature: -22 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Max Altitude Operating: 13120 ft
Dimensions and Weight
Height: 11 inch
Width: 5.2 inch
Depth: 2.6 inch
Included Items
Kit Content: FI-7000 FiberInspector Pro, USB Fiber Inspection Video Probe, Versiv Mainframe
Included Accessories: 4 probe tips (LC, FC/SC bulkhead, 1.25 mm and 2.5 mm universal), AC power adapter, Blank module, Shoulder carrying strap, USB interface cable
Certifications and Listing
Compliant Standards: EN 61326-1
