Product Information

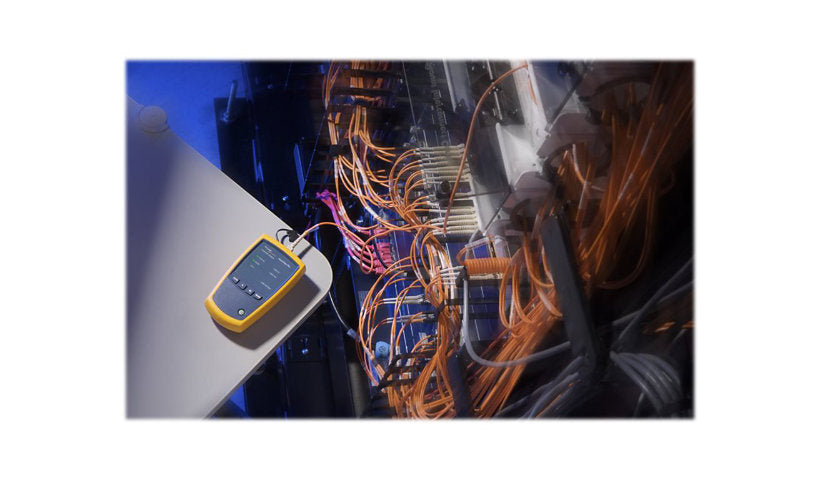

The Fluke Networks MS2-FTK pairs the MicroScanner2 cable verifier with SimpliFiber Pro fiber tools for one tech who works on both media. MicroScanner2 shows wiremap, pair lengths, distance to fault, cable ID and far end device together, with RJ-11, RJ-45 and coax ports and toning. The SimpliFiber Pro optical power meter has an InGaAs detector, and the SimpliFiber Pro 850/1300 nm multimode LED source measures loss. It includes 2 AA batteries and a carrying pouch, with a 1 year limited warranty.
Key Features
- MicroScanner2 verifier
- SimpliFiber Pro meter
- 850/1300 nm MM source
- Wiremap, length, PoE
- Copper and fiber kit
- 1 year warranty
Product Information
Tests, Tools and Measurements: Distance to fault, Length, PoE, Speed test copper cables to 1000Base-T, Wiremap
Media: Copper, Fiber
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks
Model: Copper and Fiber Basic Technician's Kit
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Backlight
Features: Cable tone generator, InGaAs detector, Rugged, USB connectivity
Features: Backlight
Connectivity
Connectors: F connector, RJ-11, RJ-45, SC
Power
Supported Battery Size: AA
Batteries Included: 2
Battery Chemistry: Alkaline
Technical Information
Cable Types: FTP, SSTP, UTP
Fiber Type: Multi-mode
Fiber Wavelength: 1310 nm, 1490 nm, 1550 nm, 1625 nm, 850 nm
Signal Source: LED
Color Support: Monochrome
Display Screen: LCD
Included Items
Kit Content: MicroScanner2 Cable Verifier, SimpliFiber Pro 850/1300 multimode source, SimpliFiber Pro optical power meter
Included Accessories: Carrying pouch
Certifications and Listing
Compliant Standards: EN 61010-1, EN 61326-1, FCC Class A
Warranty
Manufacturer Limited Warranty: 1 year
