Product Information

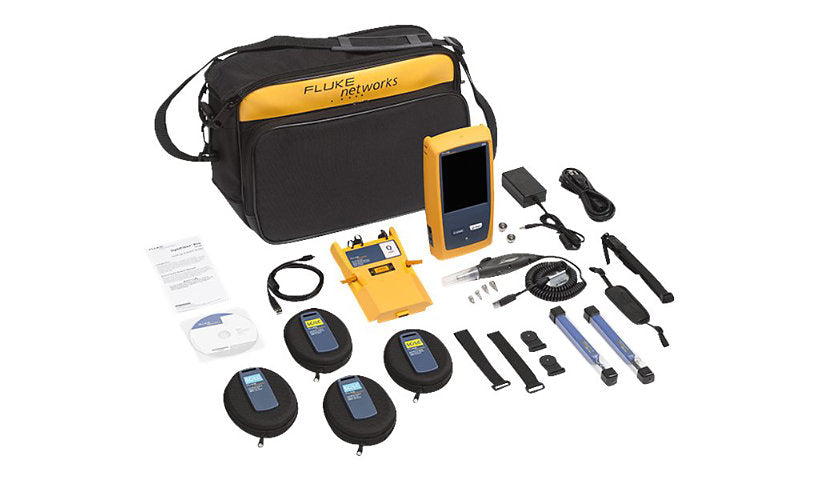

The Fluke Networks OptiFiber Pro OFP2-100-QI/GLD pairs a Versiv mainframe with a quad OTDR module (850, 1300, 1310 and 1550 nm) and adds 1 year of Gold Support. Designed for enterprise fiber, it has ultra short dead zones for data center patch cords and SmartLoop for fast bidirectional tests from one end. The kit includes a USB fiber inspection probe with 4 tips, multimode 50 µm and singlemode 9 µm SC/LC launch cables, LC adapters, Quick Clean cleaners, launch fiber straps and magnets, a Wi-Fi adapter, an AC adapter and a carrying case. The spec lists singlemode only while the module and launch cables cover multimode too, so please confirm. It has a 1 year limited warranty.
Key Features
- Quad OTDR module
- 850 to 1550 nm
- SmartLoop testing
- Inspection probe included
- 1 year Gold Support
- 1 year warranty
Product Information
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks OptiFiber Pro
Model: OFP2-100-QI
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Bundled Services: 1 Year Gold Support
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Technical Information
Fiber Type: Single-mode
Fiber Wavelength: 1300 nm, 1310 nm, 1550 nm, 850 nm
Software: Versiv Open Source Software
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 11 inch
Width: 5.2 inch
Depth: 2.6 inch
Weight: 2.82 lbs
Included Items
Kit Content: OptiFiber Pro Quad OTDR Module, Versiv Mainframe
Included Accessories: 2 x interchangeable LC adapters, 2 x Launch Fiber Hanging straps and magnets, 2 x Quick Clean Cleaners (1.25/2.50 mm), 2 x SC/LC multimode launch cables-50 µm, 2 x SC/LC singlemode launch cables-9 µm, AC power adapter, Carrying case, Shoulder carrying strap, USB fiber inspection video probe with 4 tips, USB interface cable, Wi-Fi adapter
Cables: 1 x USB cable
Warranty
Manufacturer Limited Warranty: 1 year
Not sure this tester or tool fits your job? Send us the cable types, connectors and network speeds you work with, and the DatorPro team will help you pick the right model before you order.
