Product Information

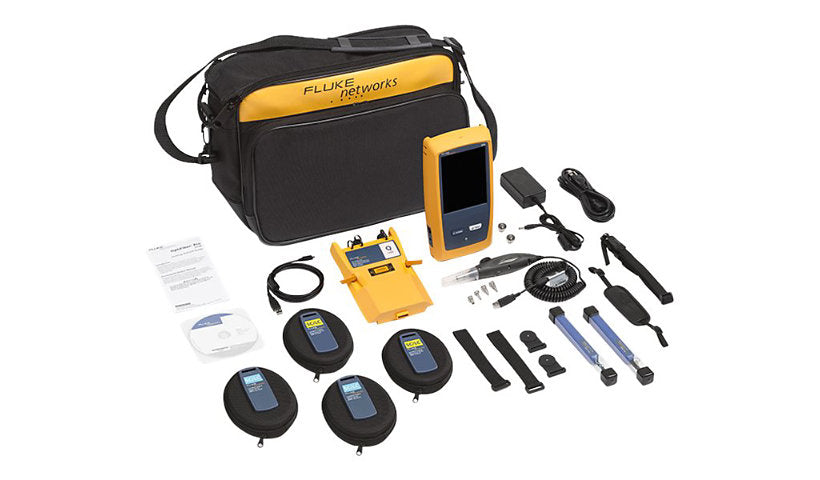

The Fluke Networks OptiFiber Pro OFP2-100-QI is an enterprise OTDR kit with a Versiv mainframe and a quad module for multimode (850 and 1300 nm) and singlemode (1310 and 1550 nm) fiber. Ultra short dead zones let it test data center patch cords, and SmartLoop runs standards based bidirectional tests in seconds without moving the OTDR to the far end. It includes a USB fiber inspection video probe with 4 tips, 50 µm multimode and 9 µm singlemode SC/LC launch cables, interchangeable LC and SC adapters, Quick Clean cleaners, launch fiber straps and magnets, a Wi-Fi adapter, AC adapter, USB cable, shoulder strap and carrying case.
Key Features
- Quad OTDR, MM and SM
- 850, 1300, 1310, 1550 nm
- Ultra short dead zones
- SmartLoop bidirectional
- Inspection probe included
- Launch cables included
Product Information
Media: Fiber
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks OptiFiber Pro OTDR
Model: OFP2-100-QI
Product Type: Network tester kit
Packaged Quantity: 1
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Technical Information
Fiber Type: Multi-mode, Single-mode
Fiber Wavelength: 1300 nm, 1310 nm, 1550 nm, 850 nm
Software: Versiv Open Source Software
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 11 inch
Width: 5.2 inch
Depth: 2.6 inch
Weight: 2.82 lbs
Included Items
Kit Content: OptiFiber Pro Quad OTDR Module, Versiv Mainframe
Included Accessories: 2 x Launch Fiber Hanging straps and magnets, 2 x OTDR source port interchangeable LC adapters, 2 x Quick Clean Cleaners (1.25/2.50 mm), 2 x SC/LC multimode launch cables-50 µm, 2 x SC/LC singlemode launch cables-9 µm, AC power adapter, Carrying case, Interchangeable SC adapter, Shoulder carrying strap, USB fiber inspection video probe with 4 tips, USB interface cable, Wi-Fi adapter
Cables: 1 x USB cable
