Product Information

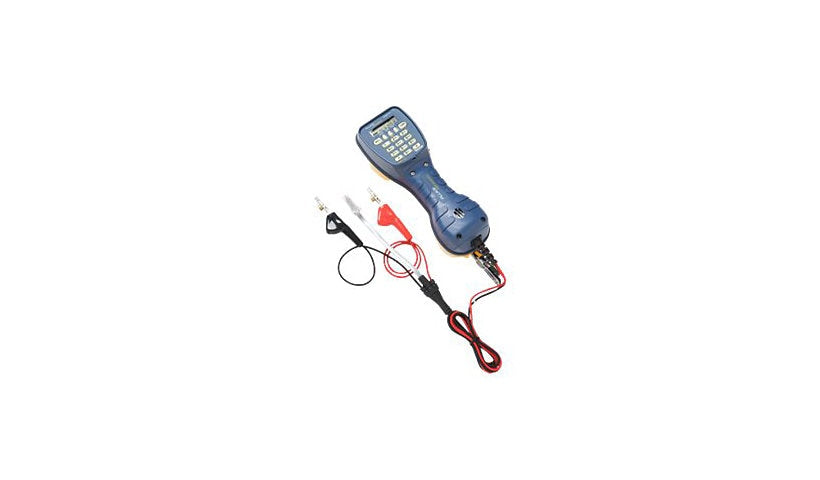

The Fluke Networks TS52 PRO (52801RJ9) is a telephone test set with ABN/PP clips and an RJ-11 plug for outside plant work. A backlit LCD and glow in the dark keypad help in dark spots, and it has a 2-way speakerphone and DataSafe Pro high impedance monitoring with data lockout and override. It shows caller ID, grabs DTMF digits, reads voltage and current and has visual ANAC. Other features include tone and pulse dialing, speed dial, redial, a PBX pause, overvoltage and overcurrent protection and RainSafe and DropSafe (20 ft to concrete). It runs on a 9 V battery.
Key Features
- Telephone test set
- Backlit LCD, glow keypad
- 2-way speakerphone
- DataSafe Pro
- Caller ID, DTMF, ANAC
- 20 ft drop rated
Product Information
Tests, Tools and Measurements: Caller ID, Data indication / warning, DTMF digit grabbing, High voltage indication / warning, Low current indication / warning, Low voltage indication / warning, Off-hook current, Off-hook voltage, On-hook voltage, Pulse, Toning, Visual ANAC mode
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks
Model: TS52 PRO Test Set with ABN/PP and RJ11 plug
Product Type: Telephone test set
Packaged Quantity: 1
Network and Communication
Features #2: Backlight
Features: Automatic overcurrent protection, Automatic overvoltage protection, Automatic power on, Build-in hands-free amplified speakerphone, DataSafe Pro, DropSafe, Firmware upgradable, Last number redial, PBX pause button, RainSafe, Speed dialing, Tone & pulse dialing, Volume control
Features: Backlight
Connectivity
Connectors: ABN/PP clips, RJ-11
Power
Battery Chemistry: Alkaline
Battery Voltage: 9 volt
Technical Information
Cable Types: Phone
Display Screen: LCD
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Min Storage Temperature: -22 degree Fahrenheit
Max Storage Temperature: 150.8 degree Fahrenheit
Physical Characteristics
Drop Specification: 20 ft to concrete
Dimensions and Weight
Height: 4.2 inch
Width: 10 inch
Depth: 3.8 inch
Weight: 1.5 lbs
Certifications and Listing
Compliant Standards: EN 61010-1, EN 61010-1 2nd edition, EN 61326-1, UL 61010-1
