Product Information

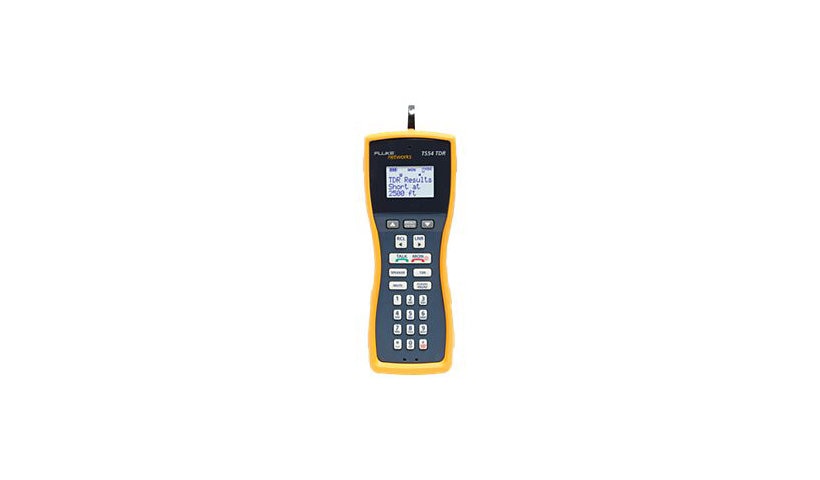

The Fluke Networks TS54 Pro (TS54-A-09-TDR) is an LCD butt-in telephone test set with a built-in TDR (time domain reflectometer), supplied with ABN clips and a piercing pin. It replaces a separate TDR, toner and pair identifier in one compact unit. It shows caller ID, grabs DTMF digits, reads on-hook and off-hook voltage, off-hook current and polarity, and warns of data, high or low voltage and low current. It has SmartTone, a headset jack, last number redial, a backlit display and RainSafe, DropSafe (20 ft to concrete) and DataSafe protection. It runs on a 9 V battery, works up to 9,840 ft and has a 1 year limited warranty.
Key Features
- Butt-in set with TDR
- Caller ID, DTMF grab
- Voltage and polarity
- RainSafe, DropSafe 20 ft
- ABN clips, piercing pin
- 1 year warranty
Product Information
Tests, Tools and Measurements: Caller ID, Data indication / warning, DTMF digit grabbing, High voltage indication / warning, Low current indication / warning, Low voltage indication / warning, Off-hook current, Off-hook voltage, On-hook voltage, Polarity, Toning
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke Networks
Model: TS54 Pro LCD Butt-in Test Set + TDR, ABN with Piercing Pin
Product Type: Telephone test set
Packaged Quantity: 1
Network and Communication
Features #2: Backlight
Features: DataSafe, DropSafe, Firmware upgradable, Headset connection, Last number redial, Power and low battery LEDs, RainSafe, SmartTone, Water-resistant
Features: Backlight
Connectivity
Connectors: ABN/PP clips
Power
Battery Chemistry: Alkaline
Battery Voltage: 9 volt
Technical Information
Cable Types: Phone
Display Screen: LCD
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Min Storage Temperature: -22 degree Fahrenheit
Max Storage Temperature: 150.8 degree Fahrenheit
Physical Characteristics
Drop Specification: 20 ft to concrete
Max Altitude Operating: 9840 ft
Dimensions and Weight
Height: 8.3 inch
Width: 3.2 inch
Depth: 2.6 inch
Weight: 1.17 lbs
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1:2010, IP64, UL 61010-1
Warranty
Manufacturer Limited Warranty: 1 year
