Product Information

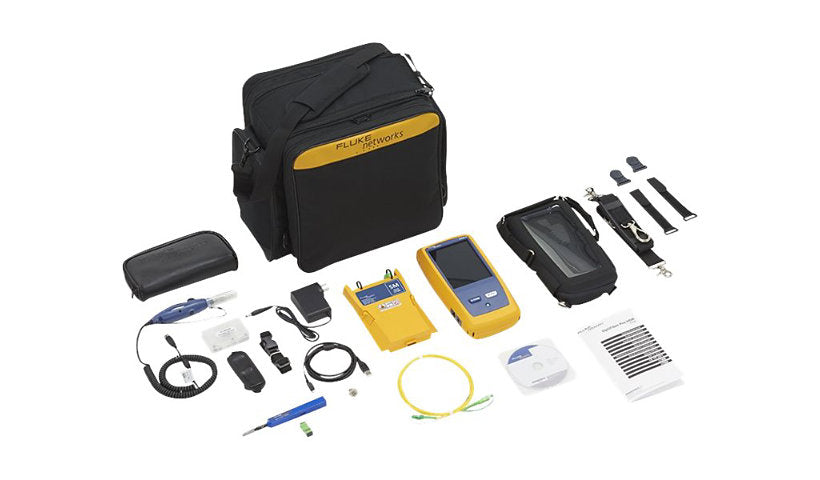

The Fluke OptiFiber Pro OFP2-200-SI1490 pairs a Versiv 2 mainframe with an HDR singlemode OTDR module at 1310, 1490 and 1550 nm for troubleshooting and certifying campus, data center and storage fiber. It has dual band Wi-Fi and up to 8 hours of battery. The kit includes a USB fiber inspection probe with 4 tips, two SC/SC APC singlemode launch cables, an SC APC simplex adapter, a 2.5 mm Quick Clean cleaner, a Wi-Fi adapter, an AC adapter, a USB cable, a shoulder strap and carrying and field cases.
Key Features
- HDR singlemode OTDR
- 1310, 1490, 1550 nm
- Versiv 2 mainframe
- Inspection probe incl.
- SC APC launch cables
- Up to 8 hour battery
Product Information
Media: Fiber
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke OptiFiber Pro
Model: OFP2-200-SI1490
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features: Wi-Fi IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Battery Run Time (Up To): 8 hour(s)
Technical Information
Fiber Type: Single-mode
Fiber Wavelength: 1310 nm, 1490 nm, 1550 nm
Software: Versiv Open Source Software
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Max Altitude Operating: 13120 ft
Dimensions and Weight
Height: 11 inch
Width: 5.2 inch
Depth: 2.6 inch
Weight: 2.82 lbs
Included Items
Kit Content: OptiFiber Pro HDR Singlemode OTDR module, Versiv 2 Mainframe
Included Accessories: 2 x SC/SCAPC singlemode launch cables-9 µm, 2.5 mm Quick Clean Cleaner, AC power adapter, Carrying case, Field case, SCAPC/SCAPC simplex adapter, Shoulder carrying strap, USB fiber inspection video probe with 4 tips, USB interface cable, Wi-Fi adapter
Certifications and Listing
Compliant Standards: EN 61326-1
