Product Information

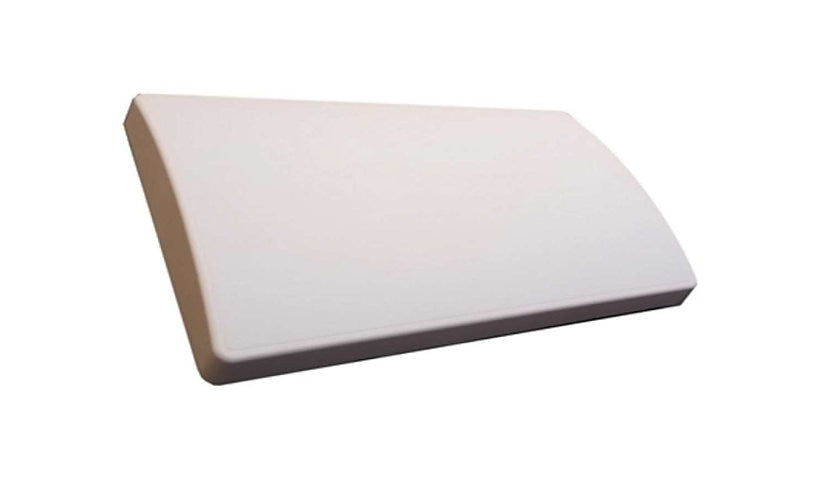

The Fortinet FANT-04BEAX-1313-D-N is a high gain tri-band directional antenna for Wi-Fi 6E and Wi-Fi 7 APs, with 13 dBi, a 115° horizontal beam and an 11° vertical beam. It has four N female connectors, is rated -40 to 158 °F and comes with a Strong Arm Mount.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 13 dBi directional
- 115° x 11° beam
- 4 x N female
- -40 to 158 °F
- Strong Arm Mount included
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 13 dBi
Antenna Placement: Indoor, Outdoor
Antenna Compatibility: 802.11ax, 802.11be
Frequency Range: 2.4 GHz, 5 GHz, 6 GHz
Signaling Type: Wi-Fi
Directivity: Directional
Features: Front-to-back ratio =21 dB, Port-to-port isolation =15 dB (for 2.4 GHz), Port-to-port isolation =35 dB (for 5 GHz), Port-to-port isolation =35 dB (for 6 GHz), Vertical polarisation
Connectivity
Connector Provided: 4 x N connector female
Technical Information
Impedance: 50 ohm
Horizontal Beamwidth: 115°
Vertical Beamwidth: 11°
Voltage Standing Wave Ratio (VSWR): 2:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Dimensions and Weight
Height: 14 inch
Width: 24 inch
Depth: 2.8 inch
Weight: 9.5 lbs
Included Items
Package Content: Strong Arm Mount (SAM)
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
