Product Information

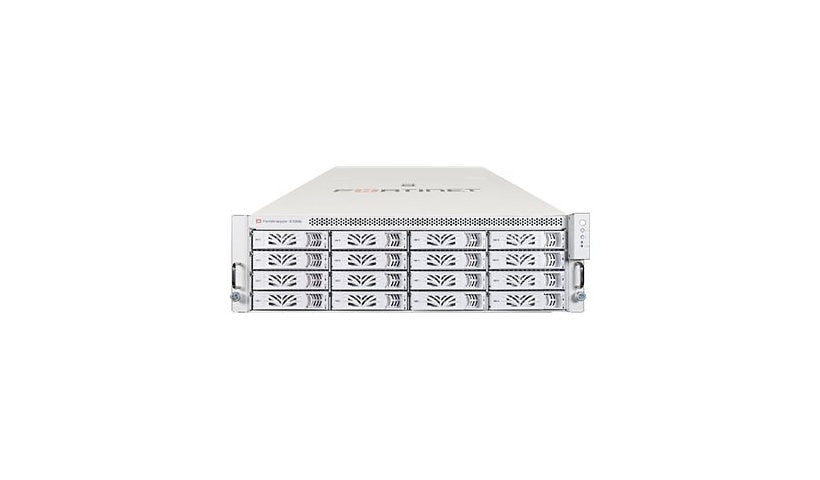

The Fortinet FortiAnalyzer 3100G is a 3U high capacity log and analytics appliance for large Fortinet deployments, not a firewall. It handles 3,000 GB of logs per day, 60,000 logs per second collected and 42,000 analyzed, up to 4,000 devices or VDOMs and 30 days of analytics. It has two Gigabit RJ-45 and two 25G SFP28 ports, sixteen 4 TB drives plus two 1.92 TB hot swap drives with RAID 0 to 60 support, and dual redundant power supplies, drawing about 395 W.
Key Features
- 3,000 GB of logs per day
- 60,000 logs/s collection
- Up to 4,000 devices/VDOMs
- 16 x 4 TB drives, RAID
- 2 x 25G SFP28 ports
- 3U, dual redundant PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAnalyzer
Model: 3100G
Product Type: Network monitoring device
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Encryption: SSL
Capacity: GB/day of logs: 3000, Max number of days analytics: 30, Maximum devices/VDOMs: 4000
Network Device: Analytic sustained rate: 42000 logs per second, Collector sustained rate: 60000 logs per second
Features: Default RAID 50, High Availability, SD-WAN support, Trusted Platform Module (TPM), VPN support
Connectivity
Interface Provided: 2 x 1000Base-T - RJ-45, 2 x 25GBase-X - SFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Power Consumption Operational: 395 watt
Power Supplies Installed: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Hard Drive (2nd) Form Factor: 2.5"
Hard Drive (2nd) Form Factor (metric): 6.4 cm
Hard Drive Form Factor (metric): 8.9 cm
RAID Levels: RAID 0, RAID 1, RAID 1 hot spare, RAID 10, RAID 5, RAID 5 hot spare, RAID 50, RAID 6, RAID 6 hot spare, RAID 60
Hot-Swap: Hot-swap
Hard Drive (2nd): Hot-swap
Hard Drive (2nd) Installed: 2
Hard Drive Capacity (2nd): 1.92 TB
Hard Drive Capacity: 4 TB
Hard Drive Form Factor: 3.5"
Port Expansion Hard Drive Type: HDD
Storage (2nd): SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 3
Airflow Direction: Front to back airflow
Installed Quantity: 16
Dimensions and Weight
Height: 5.1 inch
Width: 17.3 inch
Depth: 25.6 inch
Weight: 69.6 lbs
Certifications and Listing
Compliant Standards: CB, cUL, FCC Part 15 A, RCM, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
