Product Information

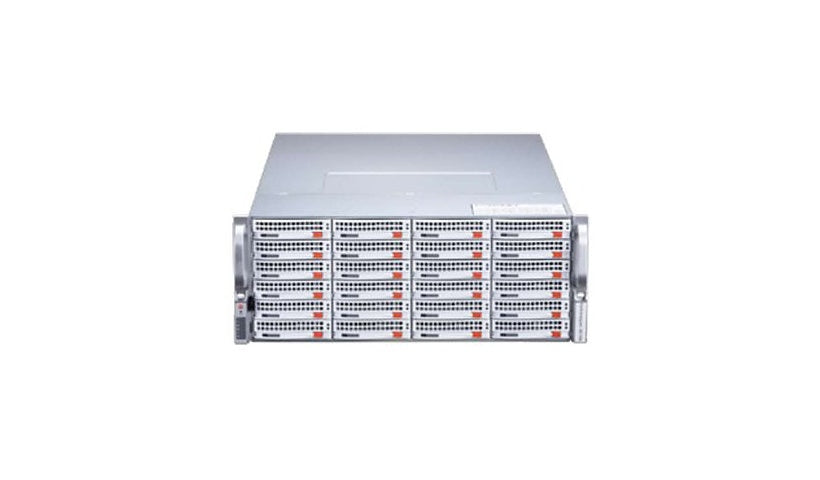

This FortiAnalyzer 3750G bundle comes with 5 years of FortiCare Premium support and 5 years of FortiAnalyzer Enterprise Protection. The 3750G is a 4U high capacity log and analytics appliance for large Fortinet deployments, not a firewall. It handles 8,300 GB of logs per day, 150,000 logs per second collected and 100,000 analyzed, up to 10,000 devices or VDOMs and 60 days of analytics. It has two 10G RJ-45 ports, two 25G SFP28 ports, 16 TB of storage plus four 15 TB NVMe drives, and redundant power.
Key Features
- 5 yr Premium + Enterprise Prot.
- 8,300 GB of logs per day
- 150,000 logs/s collection
- Up to 10,000 devices/VDOMs
- 2 x 10G RJ-45 + 2 x 25G SFP28
- 4U, redundant power
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAnalyzer
Model: 3750G
Product Type: Network monitoring device
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Capacity: GB/day of logs: 8300, Max number of days analytics: 60, Maximum devices/VDOMs: 10000
Network Device: Analytic sustained rate: 100000 logs per second, Collector sustained rate: 150000 logs per second
Features: Default RAID 50, High Availability, SD-WAN support, Self-Encrypted Disk (SED), Trusted Platform Module (TPM), VPN support
Bundled Services: 5 years FortiCare Premium Support + 5 Years FortiAnalyze Enterprise Protection
Connectivity
Interface Provided: 2 x 10GBase-T - RJ-45, 2 x 25Gb Ethernet - SFP28
Power
Device Type: Internal power supply
Required Voltage: AC 180-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 1134 watt
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Hard Drive (2nd) Interface Type: PCI Express (NVMe)
Hard Drive Form Factor (metric): 8.9 cm
RAID Levels: RAID 0, RAID 1, RAID 1 hot spare, RAID 10, RAID 5, RAID 5 hot spare, RAID 50, RAID 6, RAID 6 hot spare, RAID 60
Hot-Swap: Hot-swap
Hard Drive (2nd): Hot-swap
Hard Drive (2nd) Installed: 4
Hard Drive Capacity (2nd): 15 TB
Hard Drive Capacity: 16 TB
Hard Drive Form Factor: 3.5"
Port Expansion Hard Drive Type: HDD
Storage (2nd): SSD
Technical Information
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 4
Airflow Direction: Front to back airflow
Installed Quantity: 24
Dimensions and Weight
Height: 6.8 inch
Width: 17.2 inch
Depth: 27.5 inch
Weight: 70.11 lbs
Certifications and Listing
Compliant Standards: CB, cUL, FCC Part 15 A, RCM, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
