Product Information

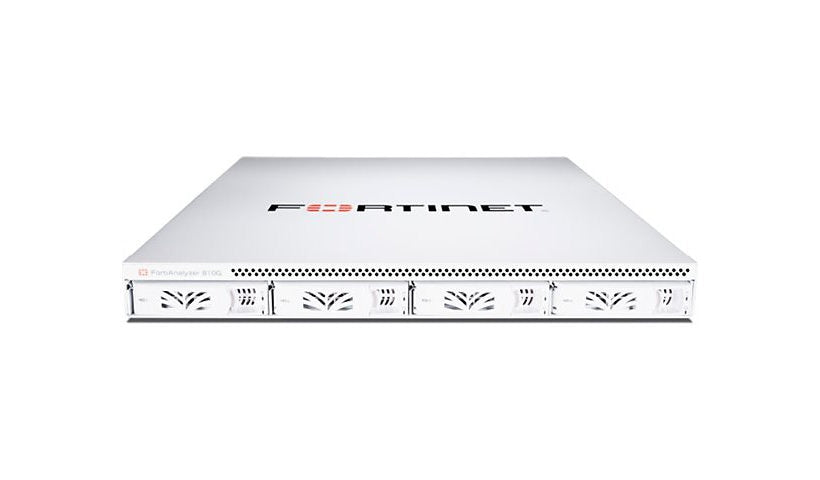

This FortiAnalyzer 810G bundle comes with 5 years of FortiCare Premium support and 5 years of FortiAnalyzer Enterprise Protection. The 810G is a 1U log and analytics appliance for FortiGate networks, not a firewall. It handles 200 GB of logs per day, 6,000 logs per second collected and 4,000 analyzed, up to 800 devices or VDOMs and 50 days of analytics. It has four Gigabit RJ-45 ports, two SFP ports, 4 TB of storage and an optional redundant power supply.
Key Features
- 5 yr Premium + Enterprise Prot.
- 200 GB of logs per day
- Up to 800 devices/VDOMs
- 4 x 1G RJ-45 + 2 x SFP
- 4 TB storage
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAnalyzer
Model: 810G
Product Type: Network monitoring device
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Capacity: GB/day of logs: 200, Max number of days analytics: 50, Maximum devices/VDOMs: 800
Network Device: Analytic sustained rate: 4000 logs per second, Collector sustained rate: 6000 logs per second
Features: Default RAID 10, Trusted Platform Module (TPM)
Bundled Services: 5 years FortiCare Premium Support + 5 Years FortiAnalyze Enterprise Protection
Connectivity
Ports: 6
Interface Provided: 2 x 1000Base-X - SFP, 4 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 115 watt
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
Hard Drive Form Factor (metric): 8.9 cm
RAID Levels: RAID 0, RAID 1, RAID 1 hot spare, RAID 10, RAID 5, RAID 5 hot spare
Hard Drive Capacity: 4 TB
Hard Drive Form Factor: 3.5"
Port Expansion Hard Drive Type: HDD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Installed Quantity: 4
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 21.7 inch
Weight: 25.75 lbs
Certifications and Listing
Compliant Standards: CB, cUL, FCC Part 15 A, RCM, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
