Product Information

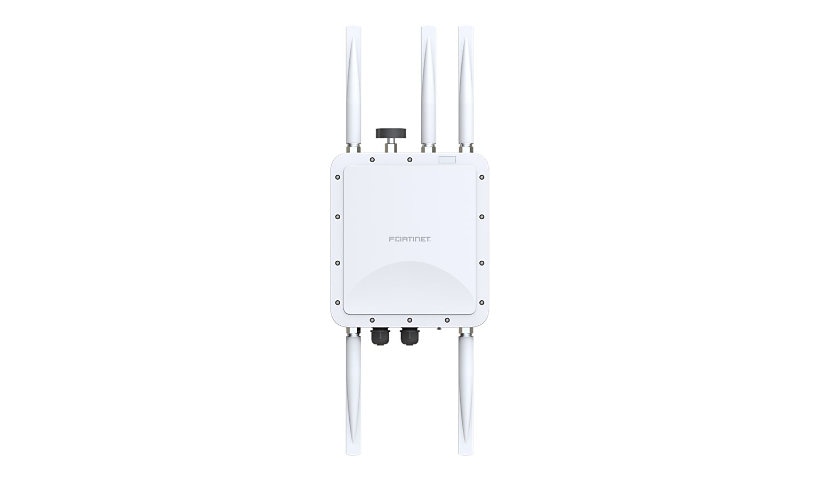

Fortinet's FortiAP 222KL is a rugged outdoor Wi-Fi 7 access point with built in LTE and LoRaWAN, IP67 sealing and ATEX Zone 2 / Class 1 Division 2 approvals. It has a 2.5G PoE port, a Gigabit port, an RS-232 console and six N-type antenna connectors, is rated -40 to 158 °F, and includes wall and pole brackets.
Key Features
- Wi-Fi 7, 2x2 MU-MIMO
- LTE with eSIM, LoRaWAN
- IP67, ATEX Zone 2, C1D2
- 2.5G PoE + 1G RJ-45
- 6 N-type antenna ports
- -40 to 158 °F, wall/pole brackets
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 222KL
Product Type: Wireless access point
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, LoRaWAN, LTE
Encryption: TLS, TTLS, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, OFDMA, QPSK
Wireless LAN: 802.11a/b/g/n/ac/ax/be, LoRaWAN, LTE
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Cellular Data Connectivity Technology: LTE Cat4
Mobile Broadband Access: Yes
Antennas: 6
Antenna Form Factor: External
Directivity: Omni-directional
Features: 2x2 MU-MIMO technology, BSS Coloring, Cellular Coexistence Filter (CCF), eSIM support, LED off mode, Packet Sniffer Mode, Power Sourcing Equipment (PSE), Spatial Reuse (RS), Spectrum analyzer, Target Wake Time (TWT), Trusted Platform Module (TPM), Uplink/downlink MU-MIMO
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 2.5 GBase-T (PoE) - RJ-45, 1 x RS-232 - RJ-45, 6 x antenna - N connector
Power Over Ethernet (PoE): PoE
Memory and Processor
Processor Brand: ARM
Processor Number: A53
Clock Speed: 1.5 GHZ
RAM Installed: 2 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: >10 Year
Physical Characteristics
Form Factor: Wall / pole mountable
Dimensions and Weight
Height: 2.4 inch
Width: 8.7 inch
Depth: 8.7 inch
Weight: 5.95 lbs
Included Items
Included Accessories: Pole mount brackets, Wall mount brackets
Certifications and Listing
Compliant Standards: ATEX Zone 2, Class 1 Division 2, FCC, FCC DFS Certified, IC, IP67, ISED
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11mc, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
