Product Information

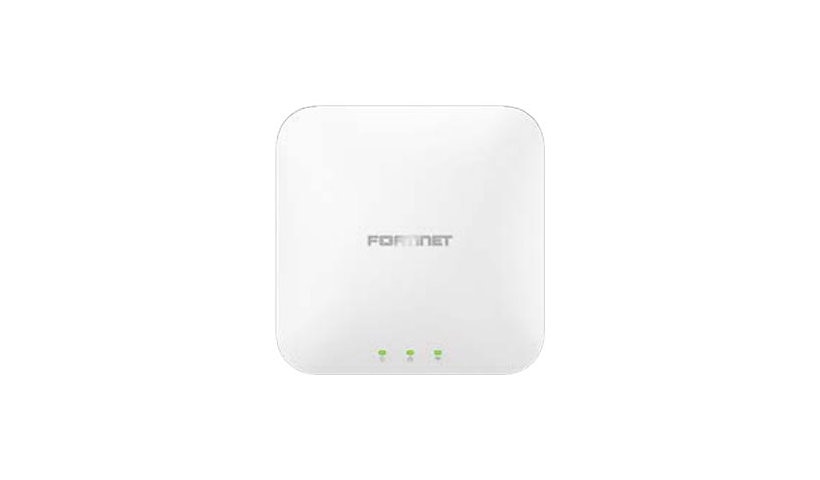

This is the TAA compliant FortiAP 231K, an indoor Wi-Fi 7 access point with 2x2 MU-MIMO on 2.4, 5 and 6 GHz, six internal antennas, Bluetooth 5.2 LE and Zigbee. It has a 5G PoE+ port and an RS-232 console and includes a wall and ceiling kit. Client and SSID figures in the source look swapped, so please confirm.
Key Features
- TAA compliant version
- Wi-Fi 7 tri-band, 2x2
- 5G RJ-45, PoE+
- 6 internal antennas
- Bluetooth 5.2 LE, Zigbee
- Wall and ceiling kit
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 231K
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.2 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2, PEAPv0, PEAPv1, Radio Service Set ID (SSID)
Encryption: TLS, TTLS, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Maximum number of configured SSIDs: up to 24, Wireless clients per Wi-Fi radio: up to 512
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.2 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (2.4 GHz): 688 Mbps, Maximum throughput (5 GHz): 2.88 Gbps, Maximum throughput (6 GHz): 5.76 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 6
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, 802.1x authentication, BSS Coloring, Captive Portal, Cellular Coexistence Filter (CCF), LED off mode, MAC black/whitelist, Packet Sniffer Mode, Rogue access point detection, Security slot (Kensington security lock compatible), Spectrum analyzer, Target Wake Time (TWT), Uplink/downlink MU-MIMO, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 5GBase-T (PoE+) - RJ-45, 1 x RS-232 - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter / power injector (not included)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: >10 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 2.2 inch
Width: 6.9 inch
Depth: 6.9 inch
Weight: 2.23 lbs
Included Items
Included Accessories: Wall/ceiling mounting kit
Certifications and Listing
Compliant Standards: RoHS, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 7
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
