Product Information

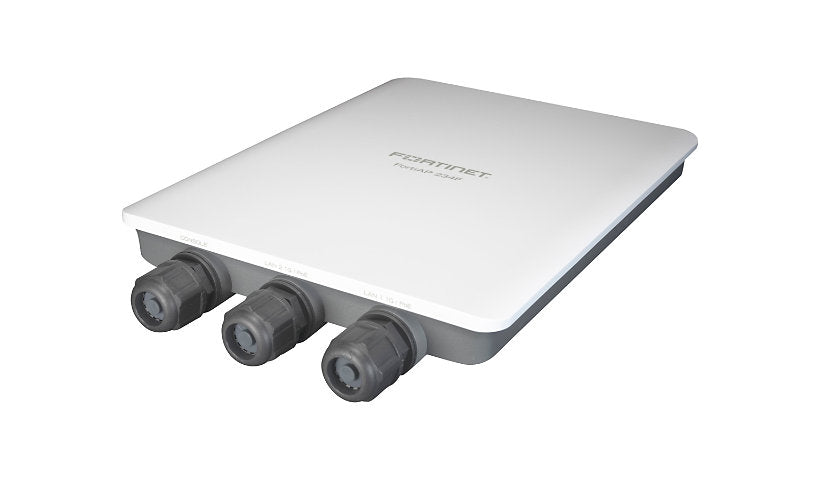

The FortiAP 234F is an outdoor Wi-Fi 6 access point with 2x2 MU-MIMO, Bluetooth 5.2 LE and Zigbee, managed from a FortiGate or FortiAP Cloud. It is IP67 rated for -40 to 140 °F, has two Gigabit ports and an RS-232 console, and includes a pole and wall mount kit.
Key Features
- Outdoor Wi-Fi 6, 2x2 MU-MIMO
- IP67, -40 to 140 °F
- 2 x Gigabit RJ-45
- Bluetooth 5.2 LE, Zigbee
- RS-232 console
- Pole / wall mount kit
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 234F
Product Type: Wireless access point
Device Type: Power injector
Packaged Quantity: 1
Color Category: Gray, White
Country: American Samoa, Argentina, Aruba, Bahamas, Bermuda, Canada, Cayman Islands, Dominican Republic, Guam, Haiti, Marshall Islands, Nicaragua, Northern Mariana Islands, Palau, Puerto Rico, Saint Kitts and Nevis, Saint Lucia, Saint Vincent, United States, Virgin Islands
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.2 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2, PEAPv0, PEAPv1, Radio Service Set ID (SSID)
Encryption: TLS, TTLS, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Wireless clients per Wi-Fi radio: up to 512
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.2 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (2.4 GHz): 574 Mbps, Maximum throughput (5 GHz): 1201 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 3
Antenna Form Factor: Internal
Directivity: Directional
Features: 2x2 MU-MIMO technology, 802.1x authentication, Auto-uplink (auto MDI/MDI-X), BSS Coloring, Captive Portal, Cellular Coexistence Filter (CCF), iBeacon technology, LED off mode, MAC black/whitelist, Packet Sniffer Mode, Rogue access point detection, Spectrum analyzer, Surge protection, Target Wake Time (TWT), Uplink/downlink MU-MIMO, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x RS-232 - RJ-45, 2 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
MTBF: >10 Year
Ruggedized Design: Indoor, Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Dimensions and Weight
Height: 1.7 inch
Width: 8.6 inch
Depth: 12.4 inch
Weight: 2.88 lbs
Included Items
Included Accessories: Pole/wall mount kit
Certifications and Listing
Compliant Standards: EU Low Voltage Directive, FCC, IP67, RoHS
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
