Product Information

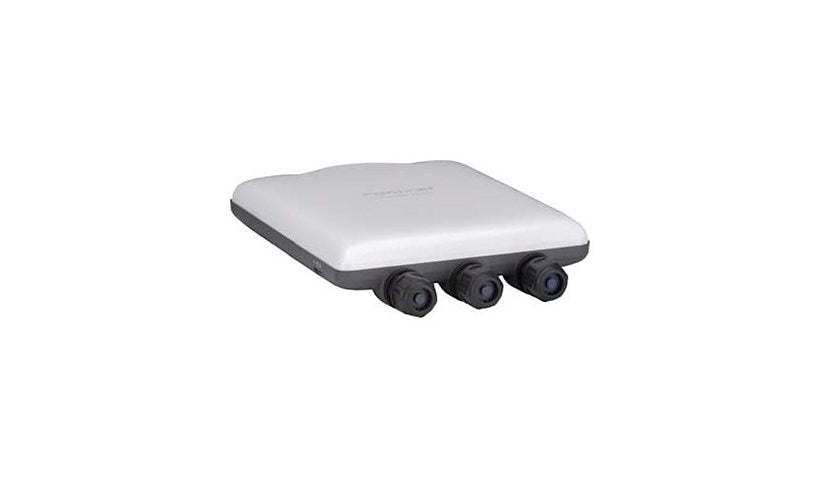

The FortiAP 234G is an outdoor Wi-Fi 6E access point with 2x2 MU-MIMO on 2.4, 5 and 6 GHz, Bluetooth LE and Zigbee, managed from a FortiGate or FortiLAN Cloud. It is IP67 rated for -40 to 140 °F, has 2.5G and Gigabit PoE++ ports with hitless failover, a console port, USB and ten antennas, and includes a pole and wall mount kit.
Key Features
- Outdoor Wi-Fi 6E, 2x2 MU-MIMO
- IP67, -40 to 140 °F
- 2.5G + 1G PoE++ ports, hitless failover
- BLE and Zigbee
- 10 antennas
- Pole / wall mount kit
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 234G
Product Type: Wireless access point
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Country: Australia, Barbados, Belize, Bolivia, Brazil, Chile, Christmas Island, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Fiji, Grenada, Guatemala, Guyana, Honduras, Hong Kong, Jamaica, Malawi, Mexico, Micronesia, New Zealand, Panama, Papua New Guinea, Paraguay, Peru, Trinidad, Uruguay, Vanuatu, Venezuela
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Bluetooth LE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2, PEAPv1, Radio Service Set ID (SSID)
Encryption: WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Maximum number of configured SSIDs: 24, Spatial streams: 2, Wireless clients per Wi-Fi radio: up to 512
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (2.4 GHz): 574 Mbps, Maximum throughput (5 GHz): 1201 Mbps, Maximum throughput (6 GHz): 2401 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 10
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2 MU-MIMO technology, 802.1x authentication, Auto-uplink (auto MDI/MDI-X), BSS Coloring, Captive Portal, Cellular Coexistence Filter (CCF), Hit-less PoE Failover, iBeacon technology, LED off mode, MAC black/whitelist, Packet Sniffer Mode, Reset button, Rogue AP detection, Security slot (Kensington security lock compatible), Spectrum analyzer, Target Wake Time (TWT), Uplink/downlink MU-MIMO, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 10/100/1000Base-T (PoE ++) - RJ-45, 1 x 100/1000/2500Base-T (PoE++) - RJ-45, 1 x console - RJ-45, 1 x USB - Type A
Power Over Ethernet (PoE): PoE++
Power
Required Voltage: AC 100-240 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: >10 Year
Ruggedized Design: Indoor, Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Status Indicators: Bluetooth Low Energy (BLE), LAN, Power, Wi-Fi
Dimensions and Weight
Height: 2.3 inch
Width: 8.5 inch
Depth: 10.2 inch
Weight: 3.04 lbs
Included Items
Included Accessories: Pole/wall mount kit
Cables: 1 x AC power cable
Certifications and Listing
Compliant Standards: EU Low Voltage Directive, FCC, IP67, RoHS, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6E
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
