Product Information

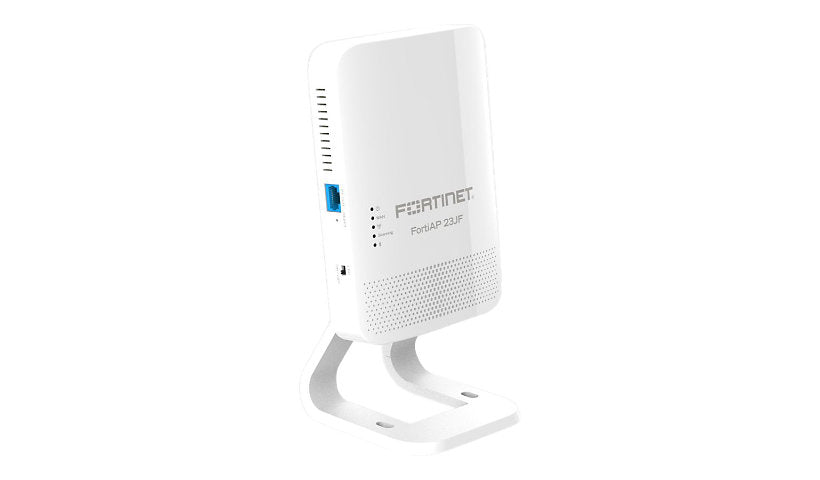

Fortinet's FortiAP 23JF is an enterprise Wi-Fi 6 wall plate access point with three radios, including a full time scanning radio, plus BLE and Zigbee. It has four Gigabit LAN ports, a PoE output port to power another device and a PoE+ uplink, and comes with a wall/ceiling/T-rail mounting kit.
Key Features
- Wi-Fi 6 dual band: 2.4, 5 GHz
- 2x2 MU-MIMO, 3 radios
- BLE and Zigbee
- 4 x Gigabit LAN, 1 x PoE output
- Gigabit PoE+ uplink
- Wall/ceiling/T-rail kit included
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 23JF
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2, Radio Service Set ID (SSID)
Encryption: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Maximum number of configured SSIDs: 16, Wireless clients per Wi-Fi radio: up to 512
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth, ZigBee
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (2.4 GHz): 574 Mbps, Maximum throughput (5 GHz): 1201 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 3
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, BSS Coloring, DFS support, iBeacon technology, LACP support, LED off mode, Packet Sniffer Mode, Power Sourcing Equipment (PSE), Security slot (Kensington security lock compatible), Spectrum analyzer, Surge protection, Target Wait Time (TWT), Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 1000Base-T (PoE output) - RJ-45, 1 x 1000Base-T (PoE+) - RJ-45, 1 x RS-232 - RJ-45, 4 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 31 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
MTBF: 10 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Desktop/Wall Mountable
Dimensions and Weight
Height: 1.1 inch
Width: 4.6 inch
Depth: 6.6 inch
Weight: 15.87 ounce
Included Items
Included Accessories: Wall/ceiling/T-Rall mounting kit
Certifications and Listing
Compliant Standards: RoHS
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
