Product Information

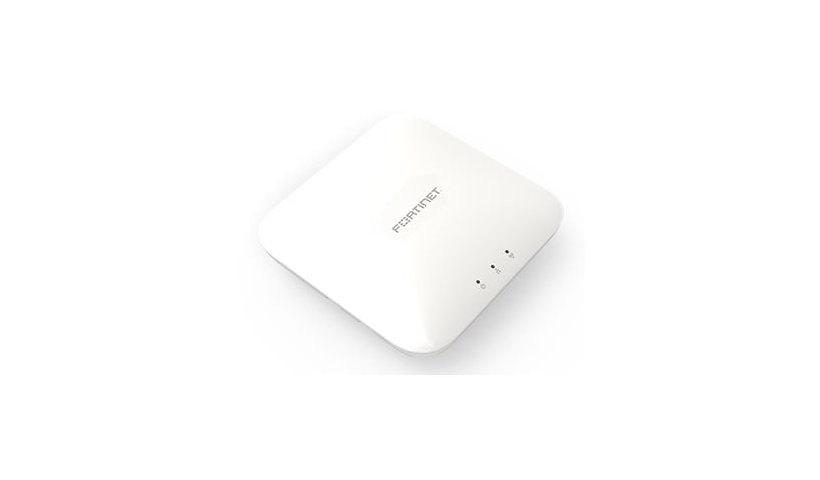

The Fortinet FortiAP 241K is an indoor tri-band Wi-Fi 7 access point with six antennas, 2x2 MU-MIMO, Bluetooth 5.1 LE and Zigbee. It has a 10G PoE++ port, a Gigabit port, USB and an RS-232 console, and includes a wall/ceiling/T-rail kit. The power injector is not included.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- 2x2 MU-MIMO, 6 antennas
- 10G PoE++ + 1G RJ-45, USB
- Bluetooth 5.1 LE and Zigbee
- Rogue AP detection
- Wall/ceiling/T-rail kit included
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 241K
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: American Samoa, Argentina, Aruba, Bahamas, Bermuda, Canada, Cayman Islands, Dominican Republic, Guam, Haiti, Mariana Islands, Marshall Islands, Nicaragua, Palau, Puerto Rico, Saint Kitts and Nevis, Saint Lucia, Saint Vincent, United States, Virgin Islands
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth 5.1 LE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2, PEAPv0, PEAPv1, Radio Service Set ID (SSID)
Encryption: EAP-AKA, EAP-FAST, EAP-GTC, EAP-MSCHAPv2, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAPv1, TLS, TTLS, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Maximum number of configured SSIDs: up to 24, Wireless clients per Wi-Fi radio: up to 512
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.1 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (2.4 GHz): 688 Mbps, Maximum throughput (5 GHz): 2.88 Gbps, Maximum throughput (6 GHz): 5.76 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 6
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, 802.1x authentication, BSS Coloring, Captive Portal, Cellular Coexistence Filter (CCF), LED off mode, MAC black/whitelist, Packet Sniffer Mode, Rogue access point detection, Security slot (Kensington security lock compatible), Spectrum analyzer, Surge protection, Target Wait Time (TWT), Uplink/downlink MU-MIMO, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 10GBase-T (PoE++) - RJ-45, 1 x RS-232 - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE++
Power
Device Type: External power adapter / power injector (not included)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: >10 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: LAN, Power, Wi-Fi
Dimensions and Weight
Height: 2 inch
Width: 7.5 inch
Depth: 7.5 inch
Weight: 2.4 lbs
Included Items
Included Accessories: Wall/ceiling/T-Rall mounting kit
Certifications and Listing
Compliant Standards: RoHS, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
