Product Information

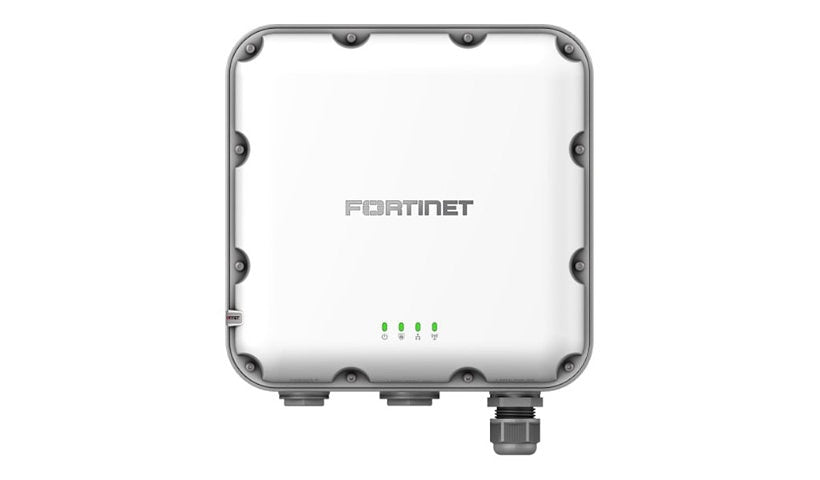

Fortinet's FortiAP 244K is a rugged outdoor tri-band Wi-Fi 7 access point with 4x4 MU-MIMO, seven directional antennas and up to 5.76 Gbps. It has a 5G PoE port, a 10G SFP+ port and a console port, works from -40 to 158 °F and includes a wall/ceiling kit.
Key Features
- Wi-Fi 7 tri-band, 4x4 MU-MIMO
- Up to 5.76 Gbps
- 5G RJ-45 (PoE) + 10G SFP+
- Directional antennas
- Outdoor, -40 to 158 °F
- Hitless PoE failover
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 244K
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: American Samoa, Argentina, Aruba, Bahamas, Bermuda, Canada, Cayman Islands, Dominican Republic, Guam, Haiti, Marshall Islands, Nicaragua, Northern Mariana Islands, Palau, Puerto Rico, Saint Kitts and Nevis, Saint Lucia, Saint Vincent, United States, Virgin Islands
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth 5.1 LE, Fast Ethernet, Gigabit Ethernet
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2, PEAPv0, PEAPv1, Radio Service Set ID (SSID)
Encryption: TLS, TTLS, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Spatial streams: 2, Wireless clients per Wi-Fi radio: up to 512
Wireless LAN: Bluetooth 5.1 LE
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (2.4 GHz): 688 Mbps, Maximum throughput (5 GHz): 4.3 Gbps, Maximum throughput (6 GHz): 5.76 Gbps
IoT Communications Technology: Bluetooth 5.1
Internet of Things (IoT) Compatible: Yes
Antennas: 7
Antenna Form Factor: Internal
Directivity: Directional
Features: 4x4 MU-MIMO technology, 802.1x authentication, BSS Coloring, Captive Portal, Cellular Coexistence Filter (CCF), Hit-less PoE Failover, LED off mode, MAC black/whitelist, Packet Sniffer Mode, Rogue access point detection, Security slot (Kensington security lock compatible), Spectrum analyzer, Surge protection, Target Wake Time (TWT), Uplink/downlink MU-MIMO, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 1/10GBase-X - SFP+, 1 x 100M/1G/2.5/5 Gigabit Ethernet (PoE) - RJ-45, 1 x serial / console - RJ-45
Power Over Ethernet (PoE): PoE++
Power
Device Type: External power adapter / power injector
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A53
Processors Installed: 1
Clock Speed: 1.5 GHZ
RAM Installed: 2 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: >10 Year
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 2.4 inch
Width: 8.7 inch
Depth: 8.7 inch
Weight: 5.29 lbs
Included Items
Included Accessories: Wall/ceiling mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 7
Compliant Standards: FCC DFS Certified, IP67, RoHS, UL 2043
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
