Product Information

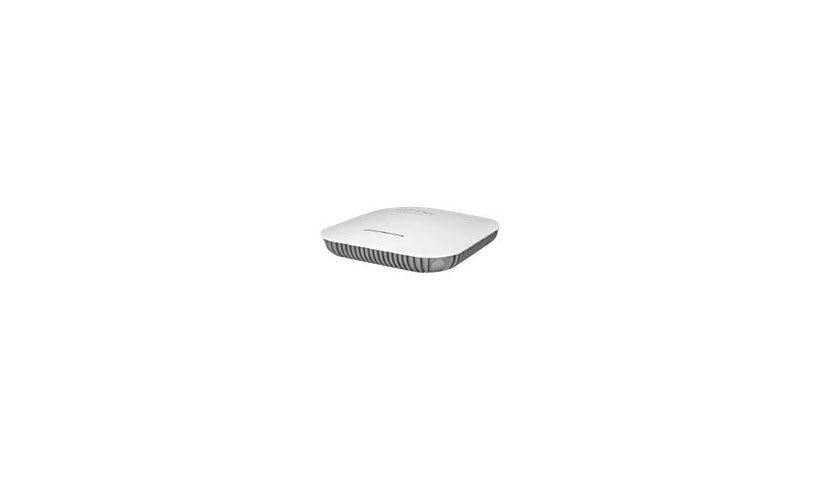

The FortiAP 431F is an indoor Wi-Fi 6 access point for campus and branch use with MU-MIMO, BLE and a spectrum analyzer. It has a 2.5G PoE+ port, a Gigabit PoE+ port, USB and an RS-232 port, draws about 24.5 W and includes T-rail and wall mounting kits.
Key Features
- Wi-Fi 6 dual band
- 2.5G + 1G PoE+ ports
- BLE, iBeacon
- Spectrum analyzer
- USB, RS-232
- T-rail and wall kits
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 431F
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: Singapore
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2
Encryption: EAP-AKA, EAP-FAST, PEAP, TLS, TTLS, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Maximum number of configured SSIDs: 16
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Antenna Form Factor: Internal
Features: 802.1x authentication, Bluetooth (BLE) clients support, DFS support, Firewall protection, iBeacon technology, MU-MIMO technology, Packet Sniffer Mode, Security slot (Kensington security lock compatible), Spectrum analyzer, Surge protection, T-Rail mountable, Target Wait Time (TWT), Wall mountable, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 1/2.5GBase-T (PoE+) - RJ-45, 1 x 1000Base-T (PoE+) - RJ-45, 1 x management (RS-232) - RJ-45, 1 x USB - Type A
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 24.5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: 10 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 2.2 inch
Width: 8.3 inch
Depth: 8.3 inch
Weight: 34.56 ounce
Included Items
Included Accessories: T-Rail mounting kit, Wall mounting kit
Certifications and Listing
Compliant Standards: RoHS
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
