Product Information

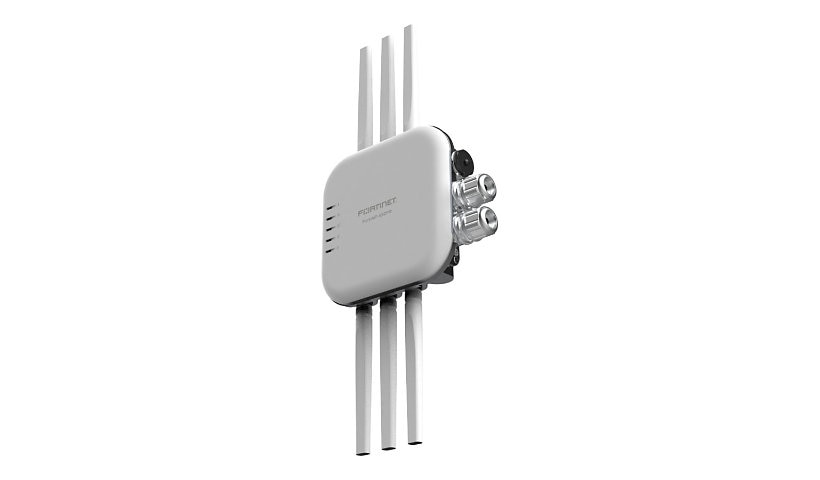

Fortinet's FortiAP 432FR is a Wi-Fi 6 access point for hazardous sites like oil rigs and plants, with C1D2 rating, IP67 enclosure and -40 to 140 °F range. It has three radios with 4x4 MIMO, six N-type antenna connectors, a 2.5G port, a Gigabit PoE out port, USB, BLE and Zigbee.
Key Features
- Wi-Fi 6 dual band, 4x4 MIMO
- C1D2, IP67, -40 to 140 °F
- 6 x N-type antenna connectors
- 2.5G RJ-45 + 1G PoE out
- BLE and Zigbee, USB
- Pole/wall mount kit
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 432FR
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: Gray, White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Bluetooth LE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2, Radio Service Set ID (SSID)
Encryption: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Maximum number of configured SSIDs: 16, Wireless clients per Wi-Fi radio: up to 512
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth, ZigBee
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (2.4 GHz): 1147 Mbps, Maximum throughput (5 GHz): 2402 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 6
Antenna Form Factor: External
Directivity: Omni-directional
Features: 4x4 MIMO technology, 802.1x authentication, Advanced Cellular Coexistence (ACC), Automatic Media-Dependent Interface Crossover (MDIX), BSS Coloring, DFS support, iBeacon technology, LACP support, LED off mode, Media Dependent Interface (MDI), Packet Sniffer Mode, Power Sourcing Equipment (PSE), Rogue access point detection, Spectrum analyzer, Surge protection, Target Wake Time (TWT), Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 100/1000/2500Base-T - RJ-45, 1 x 1000Base-T (PoE output) - RJ-45, 1 x management (RS-232) - RJ-45, 1 x USB - Type A, 6 x antenna - N connector
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 37.9 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
MTBF: >10 Year
Ruggedized Design: Indoor, Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Dimensions and Weight
Height: 2.4 inch
Width: 8.2 inch
Depth: 8.2 inch
Weight: 5.13 lbs
Included Items
Included Accessories: Pole/wall mount kit
Certifications and Listing
Compliant Standards: AS/NZS, C1D2, CFCC, CID2, EN 50385, EN 62311, FCC, IC, IEC 60529, IEC/EN/UL 62368-1, IP67, ISED, RED 2014/53/EU, RoHS, UKCA
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
