Product Information

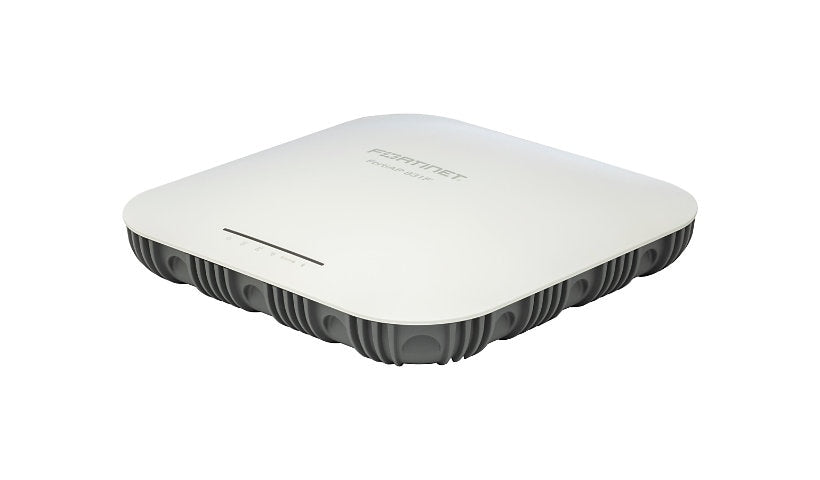

Fortinet's FortiAP 831F is a top of the line indoor Wi-Fi 6 access point with three radios and eight spatial streams (8x8), including 24/7 scanning. It has a 5G and a Gigabit PoE+ port for PoE diversity, USB 3.0, an RS-232 console, BLE and mesh support, and includes a wall/ceiling/T-rail kit.
Key Features
- Wi-Fi 6, three radios, 8x8 MIMO
- 5G + 1G RJ-45 (PoE+)
- 24/7 scanning radio
- Bluetooth LE, USB 3.0
- About 33 W
- Wall/ceiling/T-rail kit
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: 831F
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: Gray, White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2, Radio Service Set ID (SSID)
Encryption: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAPv1, TLS, TTLS, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Maximum number of configured SSIDs: 24, Wireless clients per Wi-Fi radio: 512
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth
Network Band: 2.4 GHz (1 band) / 5 GHz (2 bands)
Spread Spectrum Method: OFDMA
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Features: 8x8 MIMO technology, BSS Coloring, Captive Portal, DFS support, iBeacon technology, LACP support, LED off mode, MAC address filtering, Mesh networking, Packet Sniffer Mode, Security slot (Kensington security lock compatible), Spectrum analyzer, Surge protection, Target Wait Time (TWT), Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 1000Base-T (PoE+) - RJ-45, 1 x 100M/1G/2.5/5 Gigabit Ethernet (PoE+) - RJ-45, 1 x management (RS-232) - RJ-45, 1 x USB 3.0 - Type A
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 33 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: >10 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 2.2 inch
Width: 9.1 inch
Depth: 9.1 inch
Weight: 2.25 lbs
Included Items
Included Accessories: Wall/ceiling/T-Rall mounting kit
Certifications and Listing
Compliant Standards: RoHS
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
