Product Information

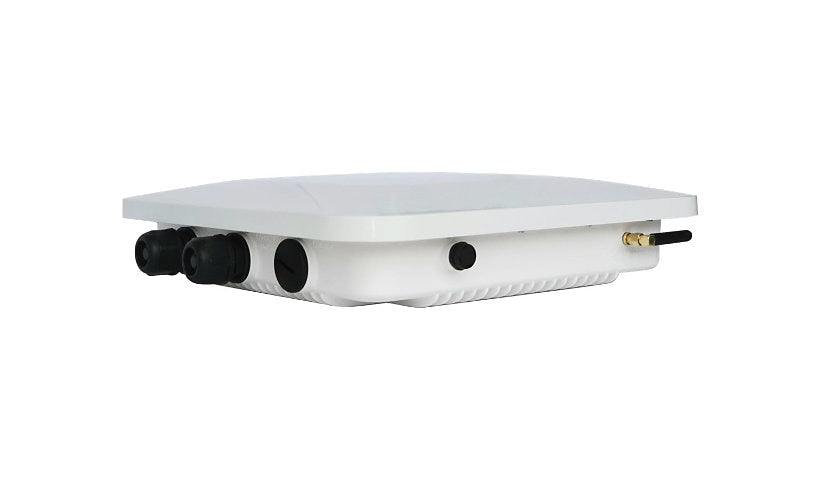

The FortiAP HD-224KL is an ultra narrow beam, high density Wi-Fi 7 access point for stadiums and large venues, running 4x4 MU-MIMO on 5 and 6 GHz. It is rated for as many as 2048 devices and 1024 users, has a 10G PoE++ port and a 5G PoE port, and is rated -40 to 131 °F.
Key Features
- High density Wi-Fi 7, 4x4
- Ultra narrow beam design
- 5 GHz and 6 GHz
- Up to 2048 devices / 1024 users
- 10G PoE++ + 5G PoE ports
- -40 to 131 °F
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: HD-224KL
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: American Samoa, Argentina, Aruba, Bahamas, Bermuda, Canada, Cayman Islands, Dominican Republic, Guam, Haiti, Marshall Islands, Nicaragua, Northern Mariana Islands, Palau, Puerto Rico, Saint Kitts and Nevis, Saint Lucia, Saint Vincent, United States, Virgin Islands
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Line Coding Format: OFDMA
Capacity: Maximum devices: 2048, Maximum number of users: 1024, Spatial streams: 4
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (5 GHz): 2882 Gbps, Maximum throughput (6 GHz): 5865 Gbps
Antenna Form Factor: Internal
Features: 4x4 MU-MIMO technology, 4x4 SU-MIMO technology, 802.1x authentication, Airtime Fairness, Auto-uplink (auto MDI/MDI-X), BSS Coloring, Captive Portal, Cellular Coexistence Filter (CCF), Client load balancing, Dynamic Frequency Selection (DFS), Dynamic Radio Management (DRM), iBeacon technology, LED off mode, LLDP support, Low Density Parity Check (LDPC), MAC black/whitelist, Quality of Service (QoS), Reset button, Rogue access point detection, Security slot (Kensington security lock compatible), SGI support, Target Wake Time (TWT), Transmit Beam-forming (TxBF) ready, Transmit Power Control (TPC), Trusted Platform Module (TPM), Uplink/downlink MU-MIMO
Connectivity
Interface Provided: 1 x 10GBase-T (PoE++) - RJ-45, 1 x 5GBase-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 184,874 Hours
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 3.1 inch
Width: 17.3 inch
Depth: 13.4 inch
Weight: 3.53 lbs
Certifications and Listing
Compliant Standards: EN 61000-4-5:2014, FCC Part 15 C, FCC Part 15 Class B, FCC Part 15 E, ICES-003 issue 6 Class B, IEC 61000-4-5:2014, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3 at, IEEE 802.3af
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
