Product Information

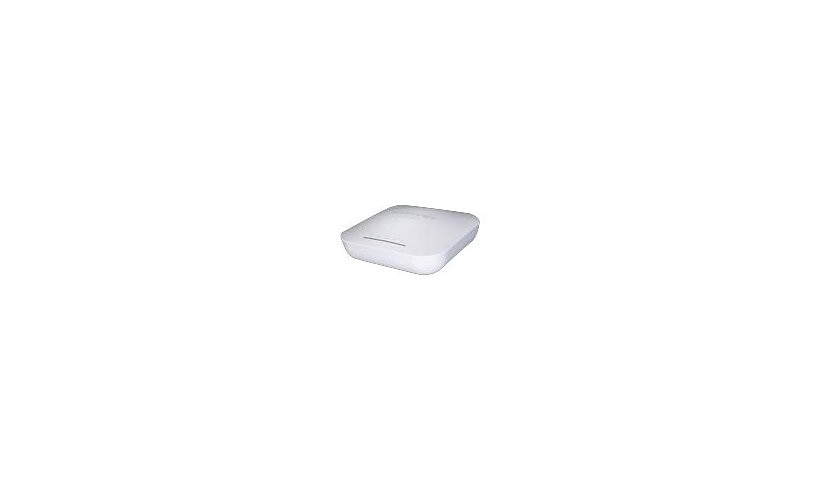

The FortiAP U231F is an indoor Wi-Fi 6 access point with 2x2 radios, two Gigabit ports, USB, an RS-232 console port, BLE and Zigbee. It draws about 18.5 W and includes a wall, ceiling and T-rail mounting kit.
Key Features
- Wi-Fi 6 dual band, 2x2
- 2 x Gigabit RJ-45
- USB, RS-232 console
- BLE and Zigbee
- About 18.5 W
- Wall, ceiling, T-rail kit
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiAP
Model: U231F
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Routing Protocol: MLD
Authentication Method: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2, Radio Service Set ID (SSID)
Encryption: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WEP, WPA, WPA2, WPA3
Line Coding Format: 1024 QAM, 256 QAM, 64 QAM, BPSK, OFDMA, QPSK
Capacity: Maximum number of configured SSIDs: 24, Wireless clients per Wi-Fi radio: up to 512
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth, ZigBee
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum data rate (2.4 GHz): 400 Mbps, Maximum data rate (5 GHz): 2400 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, 802.1x authentication, BSS Coloring, DFS support, iBeacon technology, LED off mode, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Packet Sniffer Mode, Reset button, Security slot (Kensington security lock compatible), Spectrum analyzer, Target Wait Time (TWT), Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x management (RS-232) - RJ-45, 1 x USB 2.0 - Type A, 2 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 18.5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: 10 Years
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 2 inch
Width: 6.5 inch
Depth: 6.5 inch
Weight: 23.98 ounce
Included Items
Included Accessories: Wall/ceiling/T-Rall mounting kit
Certifications and Listing
Compliant Standards: RoHS
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
Service Activation: No
