Product Information

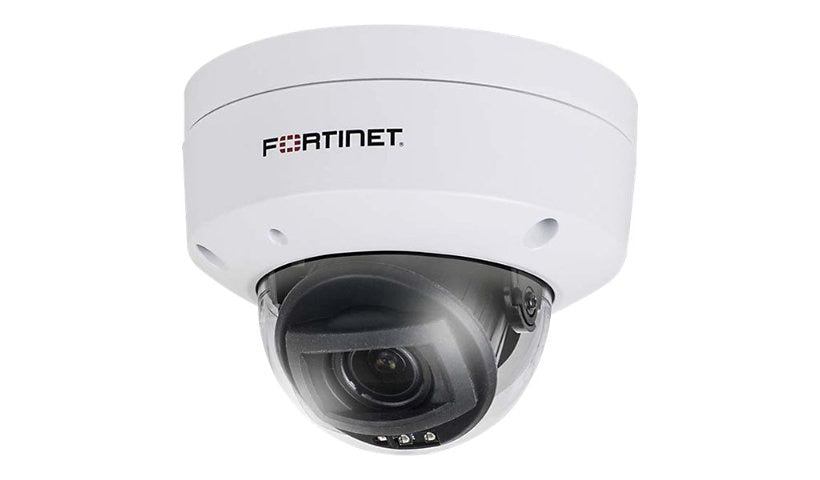

The Fortinet FortiCamera FD50 is a 5 MP fixed dome for indoor or outdoor use with a 2.8 to 12 mm motorized autofocus lens (4x). It has shutter WDR, H.265 compression, IR up to 98 ft, a built in mic with two way audio and ONVIF Profile S and G support, and runs on PoE at 12.95 W. Vandal and weatherproof.
Key Features
- 5 MP fixed dome
- 2.8 to 12 mm, 4x zoom
- IR up to 98 ft
- Mic, two way audio
- ONVIF S and G
- PoE, vandal and weatherproof
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiCamera
Model: FD50
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: ONVIF (Profile G) support, ONVIF (Profile S) support, Shutter WDR
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: RTSP
Ports: Audio line out, LAN/power - RJ-45
Power
Low Voltage Power: PoE Class 0
Power Consumption Operational: 12.95 watt
Memory and Processor
Memory Cards Supported: SD Memory Card
Technical Information
Angular Field of View (D, Max, Degree): 115
Angular Field of View (H, Max, Degree): 90
Angular Field of View (V, Max, Degree): 65
Focus Modes: Automatic
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 38
Max Focal Length: 12 millimetre
Optical Zoom: 4
Angular Field of View (H, Min, Degree): 30
Angular Field of View (V, Min, Degree): 23
Camera Iris: Fixed iris
Minimum Illumination: 0.005 lux - B&W - F1.4, 0.035 lux - color - F1.4
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.7"
Image Sensor Type: CMOS
Lens Aperture: F/1.4-2.8
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.4 mm (1/2.7")
Max Frame Rate: 30 frames per second
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, HEVC, MJPEG
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, Two-way audio capability
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.1 inch
Width: 5.2 inch
Depth: 5.2 inch
Weight: 3.97 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
