Product Information

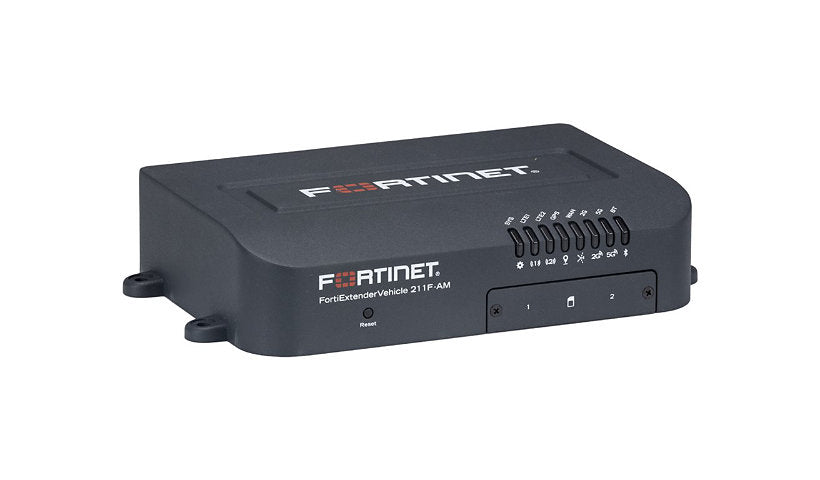

The Fortinet FortiExtenderVehicle 211F-AM extends a secure LTE wireless WAN to vehicles and industrial sites. It combines an LTE Cat 12 and GNSS module with 2x2 Wi-Fi 5 and Bluetooth 5.0, one Gigabit WAN, four Gigabit LAN ports, USB 2.0 and a DB-9 console. Six antennas and a mounting kit are listed.
Key Features
- LTE Cat 12, 2 x Micro SIM, GPS
- Wi-Fi 5 Wave 2 dual band, Bluetooth 5.0
- 1 x GbE WAN, 4 x GbE LAN
- USB 2.0, DB-9 serial, digital I/O
- VLAN, CAPWAP, receiver diversity
- Desktop or wall mount, 17.88 W
Product Information
Product Type #2: Wireless cellular modem
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiExtenderVehicle
Model: 211F-AM
Product Type: Router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 5.0, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Transfer Rate: 1200 MBps
Integrated Switch: 4-port switch
Wireless LAN: 802.11a/b/g/n/ac Wave 2, Bluetooth 5.0
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: HSPA+, LTE, UMTS, WCDMA
Antennas: 6
Antenna Form Factor: External
Features: 2x2 MIMO technology, CAPWAP support, GNSS Bias, Receiver diversity, Receiver equalization, Reset button, VLAN support
Connectivity
Interface Provided: Antenna: 6 x SMA, LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x 9 pin D-Sub (DB-9), USB 2.0: 1 x, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Micro-SIM
WAN Ports Quantity: 1
Power
Power Consumption Operational: 17.88 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Mounting Kit: Included
Status Indicators: 2.4/5 GHz, Bluetooth, GNSS, GPS, LTE, Power, System, WAN
Built-in Devices: GPS
Dimensions and Weight
Height: 1.8 inch
Width: 7.2 inch
Depth: 5.1 inch
Weight: 34.21 ounce
Included Items
Included Accessories: 2 x Wi-Fi antennas, Bluetooth antenna, Drill template sticker, SIM card adapter
Certifications and Listing
Compliant Standards #2: EN 50155 Class S1, FCC, FCC 2.1091, FCC Part 15 B, FCC Part 15 C, GCF, IC, ICES-003, IEC/EN 62368-1, IP64, MIL-STD-810H, Plug and Play, PTCRB, RSS-102, RSS-247, SAE J1455
Compliant Standards: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards: EN 50155 Class S1, FCC, FCC 2.1091, FCC Part 15 B, FCC Part 15 C, GCF, IC, ICES-003, IEC/EN 62368-1, IP64, MIL-STD-810H, Plug and Play, PTCRB, RSS-102, RSS-247, SAE J1455
Warranty
Service Activation: No
