Product Information

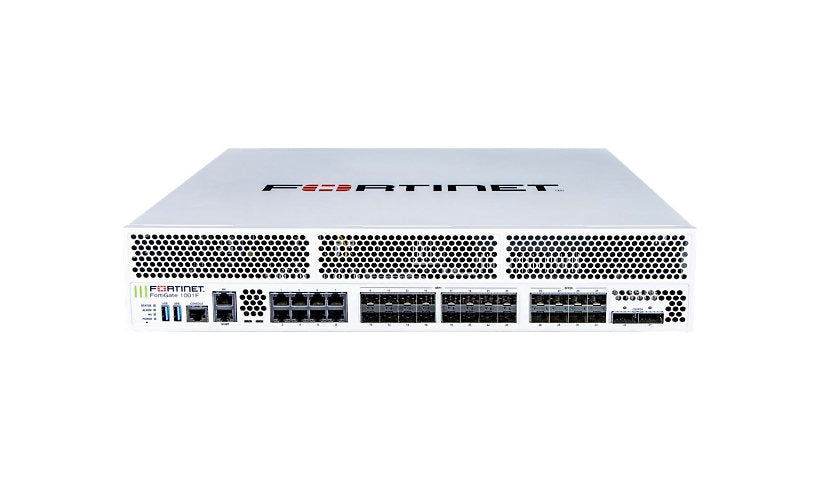

This FortiGate 1000F bundle comes with 3 years of FortiCare Premium support and 3 years of FortiGuard Enterprise Protection. The 1000F is a 2U data center firewall rated at 198 Gbps firewall (1518-byte UDP), 44 Gbps application control and 19 Gbps IPS, with up to 7.5 million TCP sessions and 650,000 new sessions per second. It has two 40/100G QSFP28 ports, eight 1/10/25G SFP28 ports, sixteen 1/10G SFP+ ports, eight 100M to 10G RJ-45 ports, HA and management ports and dual redundant power supplies.
Key Features
- 3 yr Premium + Enterprise Protection
- 198 Gbps firewall (1518-byte UDP)
- 19 Gbps IPS
- 2 x 100G QSFP28
- 8 x 25G SFP28 + 16 x SFP+
- 2U, dual redundant PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 1000F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 100000, Concurrent SSL VPN users: 10000, Concurrent TCP sessions: 7500000, Firewall policies: 100000, Gateway to gateway IPSec VPN Tunnels: 20000, Maximum virtual domains: 250, New TCP sessions per second: 650000, Number of FortiAP devices (tunnel): 1024, Number of FortiAP devices: 4096, Number of FortiSwitches: 196, Number of FortiToken devices: 20000, SSL inspection concurrent sessions: 600000, SSL inspection CPS: 11000, Virtual domains: 10
Network Device: Application control throughput: 44 Gbps, CAPWAP throughput: 65 Gbps, Firewall latency (64-byte UDP): 3.45 µs, Firewall throughput: 201 Mpps, IPS throughput: 19 Gbps, IPv4 firewall throughput (1518-byte UDP): 198 Gbps, IPv4 firewall throughput (512-byte UDP): 196 Gbps, IPv4 firewall throughput (64-byte UDP): 134 Gbps, IPv6 firewall throughput (1518-byte UDP): 198 Gbps, IPv6 firewall throughput (512-byte UDP): 196 Gbps, IPv6 firewall throughput (86-byte UDP): 134 Gbps, NGFW throughput: 15 Gbps, SSL inspection throughput: 10 Gbps, Threat protection throughput: 13 Gbps, VPN throughput (512-bit IPSec): 55 Gbps, VPN throughput (SSL): 5.3 Gbps
Features: CAPWAP support, High Availability, Trusted Platform Module (TPM), VPN support, Zero Trust Network Access (ZTNA)
Bundled Services: 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45, 1 x 1/2.5 Gigabit Ethernet (High Availability) - RJ-45, 1 x console - RJ-45, 16 x 1000Base-X/10GBase-X - SFP/SFP+, 2 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28, 2 x USB - Type A, 8 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 8 x 100M/1G/2.5/5/10 Gigabit Ethernet - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 210 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Airflow Direction: Front to back airflow
Status Indicators: Alarm, HA, Power, Status
Dimensions and Weight
Height: 3.5 inch
Width: 17.4 inch
Depth: 17.6 inch
Weight: 21.94 lbs
Included Items
Included Accessories: 2 SX SFP transceivers
Warranty
Service Activation: No
