Product Information

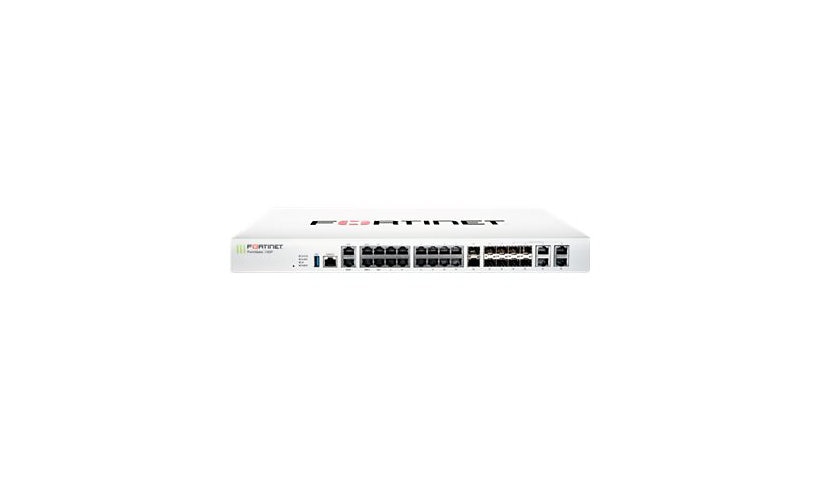

This is the Fortinet FortiGate 100F High Availability unit, sold to be paired with a second unit for failover (quick specs say it must be purchased in a pair). The 100F is a 1U firewall rated at 20 Gbps firewall (1518-byte UDP) and 2.2 Gbps application control. It has twelve Gigabit LAN ports, two WAN ports, two management/DMZ ports, two HA ports, four RJ-45/SFP shared ports, four SFP ports, two 10G SFP+ FortiLink ports and two power supplies.
Key Features
- High Availability unit
- Sold in pairs
- 20 Gbps firewall (1518-byte UDP)
- 2 x 10G SFP+ FortiLink
- Dual power supplies
- 1U, desk/wall/rack
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 100F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 16000, Concurrent SSL VPN users: 500, Concurrent TCP sessions: 1500000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum virtual domains: 10, New TCP sessions per second: 56000, Number of FortiAP devices (tunnel): 64, Number of FortiAP devices: 128, Number of FortiSwitches: 32, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 135000, SSL inspection CPS: 1800, Virtual domains: 10
Network Device: Application control throughput: 2.2 Gbps, CAPWAP throughput: 15 Gbps, Firewall latency (64-byte UDP): 4.97 µs, Firewall throughput (1518-byte UDP): 20 Gbps, Firewall throughput (512-byte UDP): 18 Gbps, Firewall throughput (64-byte UDP): 10 Gbps, Firewall throughput: 15 Mpps, IPS throughput (enterprise traffic mix): 2.6 Gbps, NGFW throughput (enterprise traffic mix): 1.6 Gbps, SSL inspection throughput: 1 Gbps, Threat protection throughput (enterprise traffic mix): 1 Gbps, VPN throughput (512-bit IPSec): 11.5 Gbps, VPN throughput (SSL): 1 Gbps
Operating System Edition: FortiOS
Features: AI powered, Built-in ASIC, CAPWAP support, Data Loss Prevention (DLP), DDoS Protection, Fanless, Firewall protection, High Availability, Intrusion Prevention System (IPS), NGFW appliance, SD-WAN support, Self-healing network, SSL inspection, URL filtering, VPN support, Zero Trust Network Access (ZTNA)
Edition: High Availability
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0, 12 x 1000Base-T - RJ-45, 2 x 10/100/1000Base-T (management) - RJ-45 (DMZ), 2 x 1000Base-T - RJ-45 (WAN), 2 x 1000Base-T (HA) - RJ-45, 2 x 10GBase-X (FortiLink) - SFP+, 4 x 1000Base-T - SFP (mini-GBIC), 4 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC)
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 26.5 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop / wall / rack mountable
Height (Rack Units): 1
Status Indicators: Alarm, DMZ, HA, Management, Power, Status, WAN
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 10 inch
Weight: 7.25 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, cUL, FCC, RCM, UL, USGv6, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
