Product Information

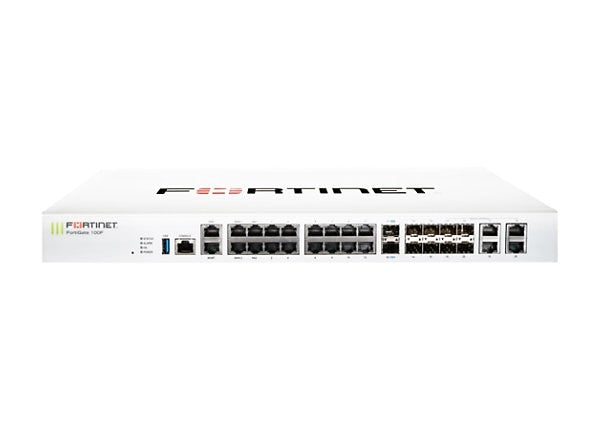

This FortiGate 101F bundle comes with 3 years of 24x7 FortiCare and FortiGuard UTM Protection. The 101F is the 100F model with a 480 GB SSD, a 1U firewall for campus and enterprise branch sites rated at 20 Gbps firewall, 11.5 Gbps IPsec VPN, 1.6 Gbps IPS and 800 Mbps NGFW, with up to 2,500 overlay tunnels. Quick specs list twelve Gigabit RJ-45 ports, two RJ-45 WAN ports and eight SFP slots, while the spec lists different counts, please confirm. It also has two 10G SFP+ ports, a DMZ port and a management port.
Key Features
- 3 yr 24x7 FortiCare + UTM
- 480 GB SSD
- 20 Gbps firewall
- 11.5 Gbps IPsec VPN
- 2 x 10G SFP+
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 101F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Maximum overlay tunnels: 2500
Network Device: Firewall throughput: 20 Gbps, IPS throughput: 1.6 Gbps, NGFW throughput: 800 Mbps, SSL inspection throughput: 1 Gbps, Threat protection throughput: 700 Mbps, VPN throughput (IPSec): 11.5 Gbps
Operating System Edition: FortiOS
Features: Anti-malware protection, Firewall protection, IPSec Virtual Private Network (VPN), IPv6 support, Routing, Switching, Web threat protection
Bundled Services: 3 years UTM Protection Bundle
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x network - RJ-45 (DMZ), 1 x USB 3.0 - Type A, 10 x Ethernet 1000 - SFP (mini-GBIC), 2 x 10Gb Ethernet - SFP+, 20 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Height (Rack Units): 1
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 10 inch
Weight: 7.56 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
