Product Information

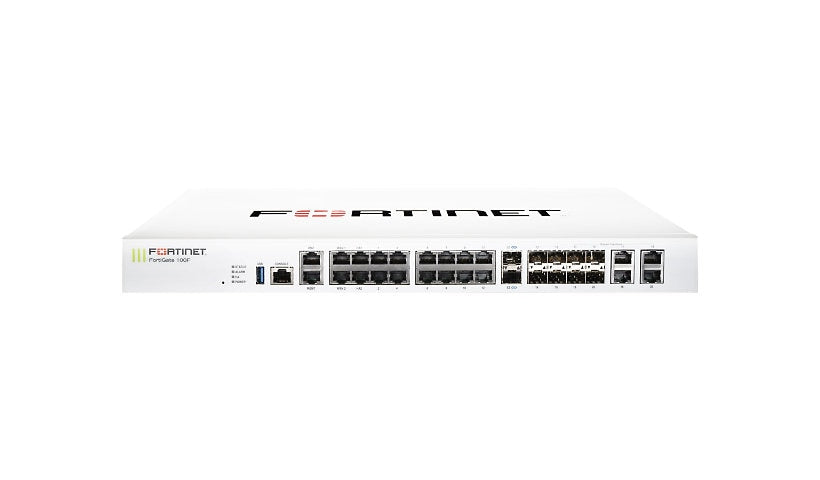

The Fortinet FortiGate 101F is the 100F model with a 480 GB SSD, a 1U next generation firewall for campus and enterprise branch sites, rated at 20 Gbps firewall, 11.5 Gbps IPsec VPN, 1.6 Gbps IPS and 800 Mbps NGFW, with up to 2,500 overlay tunnels. It has Gigabit RJ-45 and SFP ports, two 10G SFP+ ports, a DMZ port, a management port and two power supplies, drawing about 39 W. This is the hardware without a service bundle.
Key Features
- 480 GB SSD
- 20 Gbps firewall
- 11.5 Gbps IPsec VPN
- 2 x 10G SFP+
- Dual power supplies
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 101F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec
Capacity: Maximum overlay tunnels: 2500
Network Device: Firewall throughput: 20 Gbps, IPS throughput: 1.6 Gbps, NGFW throughput: 800 Mbps, SSL inspection throughput: 1 Gbps, Threat protection throughput: 700 Mbps, VPN throughput (IPSec): 11.5 Gbps
Features: Firewall protection, IPv6 support
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x network - RJ-45 (DMZ), 1 x USB 3.0, 10 x Ethernet 1000 - SFP (mini-GBIC), 2 x 10Gb Ethernet - SFP+, 20 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Consumption Operational: 39.1 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Hard Drive Capacity: 480 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Height (Rack Units): 1
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 10 inch
Weight: 7.56 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, cUL, FCC Part 15 B Class A, RCM, UL
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
