Product Information

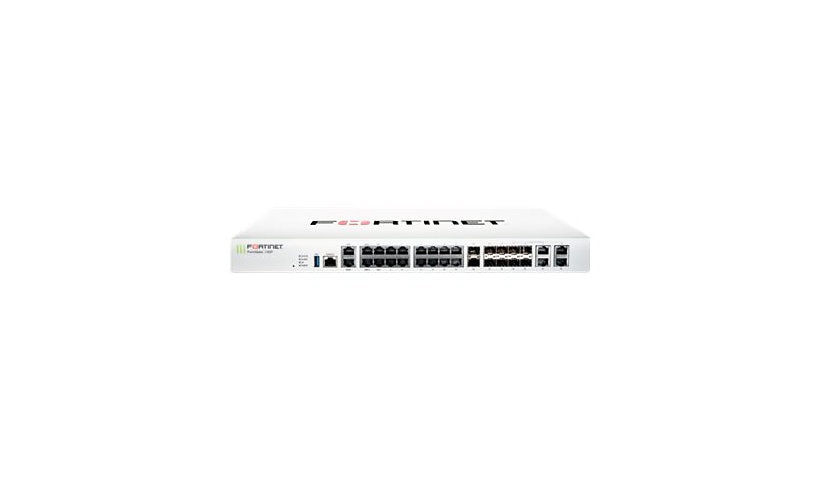

This is the Fortinet FortiGate 101F High Availability unit, sold to be paired with a second unit for failover (quick specs say it must be purchased in a pair). The 101F is the 100F model with a 480 GB SSD, a 1U firewall rated at 20 Gbps firewall (1518-byte UDP), 2.6 Gbps IPS and 1.6 Gbps NGFW, with up to 1.5 million TCP sessions. It has twelve Gigabit LAN ports, two WAN ports, two HA ports, shared RJ-45/SFP ports, SFP ports, two 10G SFP+ FortiLink ports and dual redundant power supplies.
Key Features
- High Availability unit
- Sold in pairs
- 480 GB SSD
- 20 Gbps firewall (1518-byte UDP)
- 1.6 Gbps NGFW
- 1U, dual redundant PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 101F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 16000, Concurrent SSL VPN users: 500, Concurrent TCP sessions: 1500000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum virtual domains: 10, New TCP sessions per second: 56000, Number of FortiAP devices (tunnel): 64, Number of FortiAP devices: 128, Number of FortiSwitches: 32, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 135000, SSL inspection CPS: 1800, Virtual domains: 10
Network Device: Application control throughput: 2.2 Gbps, CAPWAP throughput: 15 Gbps, Firewall latency (64-byte UDP): 4.97 µs, Firewall throughput (1518-byte UDP): 20 Gbps, Firewall throughput (512-byte UDP): 18 Gbps, Firewall throughput (64-byte UDP): 10 Gbps, Firewall throughput: 15 Mpps, IPS throughput (enterprise traffic mix): 2.6 Gbps, NGFW throughput (enterprise traffic mix): 1.6 Gbps, SSL inspection throughput: 1 Gbps, Threat protection throughput (enterprise traffic mix): 1 Gbps, VPN throughput (512-bit IPSec): 11.5 Gbps, VPN throughput (SSL): 1 Gbps
Operating System Edition: FortiOS
Features: AI powered, Built-in ASIC, CAPWAP support, Data Loss Prevention (DLP), DDoS Protection, Fanless, Firewall protection, High Availability, Intrusion Prevention System (IPS), NGFW appliance, SD-WAN support, Self-healing network, SSL inspection, URL filtering, VPN support, Zero Trust Network Access (ZTNA)
Edition: High Availability
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0, 12 x 1000Base-T - RJ-45, 2 x 10/100/1000Base-T (management) - RJ-45 (DMZ), 2 x 1000Base-T - RJ-45 (WAN), 2 x 1000Base-T (HA) - RJ-45, 2 x 10GBase-X (FortiLink) - SFP+, 4 x 1000Base-T - SFP (mini-GBIC), 4 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC)
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 35.3 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP4
Processors Installed: 1
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop / wall / rack mountable
Height (Rack Units): 1
Status Indicators: Alarm, DMZ, HA, Management, Power, Status, WAN
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 10 inch
Weight: 7.56 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
