Product Information

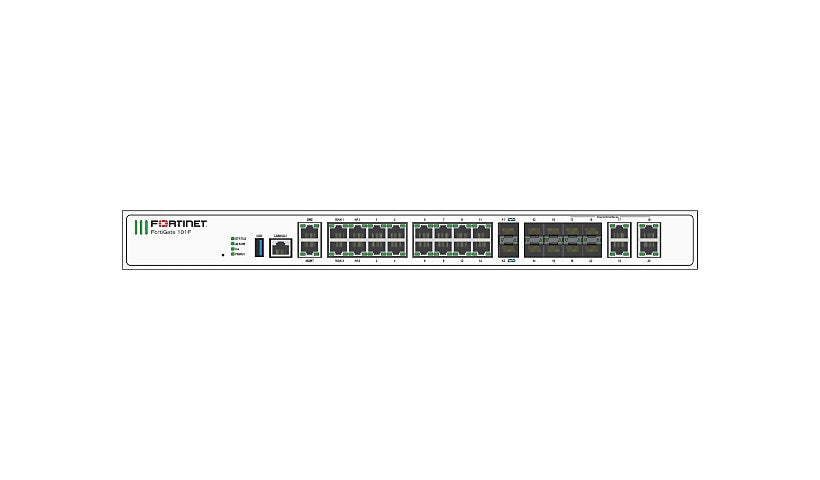

This is the TAA compliant FortiGate 101F with 3 years of 24x7 FortiCare support and 3 years of FortiGuard Unified Threat Protection. The 101F is the 100F model with a 480 GB SSD, a 1U firewall rated at 20 Gbps firewall (1518-byte UDP), 2.6 Gbps IPS, 1.6 Gbps NGFW and 11.5 Gbps IPsec VPN, with up to 1.5 million TCP sessions. It has twelve Gigabit LAN ports, two WAN ports, a DMZ port, two HA ports, four RJ-45/SFP shared ports, four SFP ports and two 10G SFP+ FortiLink ports.
Key Features
- TAA compliant
- 3 yr 24x7 FortiCare + UTP
- 480 GB SSD
- 20 Gbps firewall (1518-byte UDP)
- 2 x 10G SFP+ FortiLink
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet Federal
Product Line: Fortinet FortiGate
Model: 101F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 16000, Concurrent SSL VPN users: 500, Concurrent TCP sessions: 1500000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2500, Maximum virtual domains: 10, New TCP sessions per second: 56000, Number of FortiAP devices (tunnel): 64, Number of FortiAP devices: 128, Number of FortiSwitches: 32, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 135000, SSL inspection CPS: 1800, Virtual domains: 10
Network Device: Application control throughput: 2.2 Gbps, CAPWAP throughput: 15 Gbps, Firewall latency (64-byte UDP): 4.97 µs, Firewall throughput (1518-byte UDP): 20 Gbps, Firewall throughput (512-byte UDP): 18 Gbps, Firewall throughput (64-byte UDP): 10 Gbps, Firewall throughput: 15 Mpps, IPS throughput: 2.6 Gbps, NGFW throughput: 1.6 Gbps, SSL inspection throughput: 1 Gbps, Threat protection throughput: 1 Gbps, VPN throughput (512-bit IPSec): 11.5 Gbps, VPN throughput (SSL): 1 Gbps
Operating System Edition: FortiOS
Features: SD-WAN support, VPN support
Bundled Services: 3 years 24x7 FortiCare Support + 3 years FortiGuard Unified Threat Protection (UTP)
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45 (DMZ), 1 x console - RJ-45, 1 x management - RJ-45 (DMZ), 1 x USB 3.0 - Type A, 12 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x 1000Base-T (HA) - RJ-45, 2 x 10GBase-X (FortiLink) - SFP+, 4 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC), 4 x 1000Base-X - SFP
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Side to back airflow
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 10 inch
Weight: 7.56 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
