Product Information

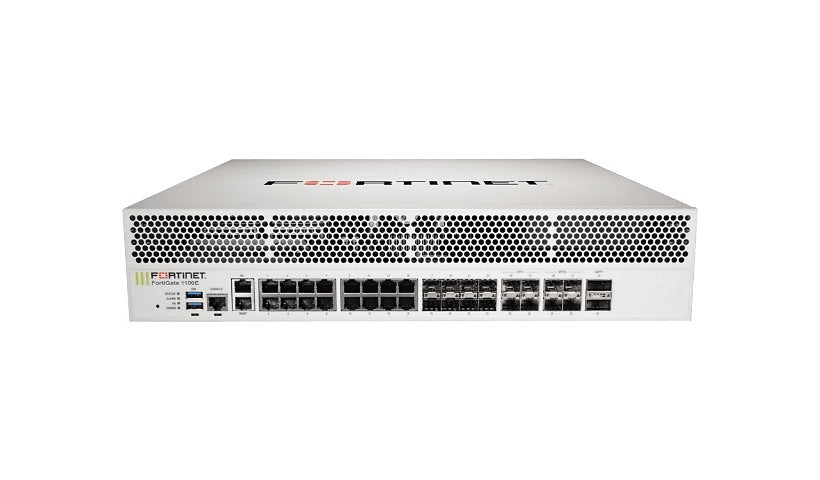

This FortiGate 1100E bundle comes with 1 year of UTM Protection. The 1100E is a 2U firewall for large enterprises and service providers, rated at 80 Gbps firewall (1518-byte), 26 Gbps application control, 12.5 Gbps IPS, 9.8 Gbps NGFW and 10 Gbps SSL inspection, with up to 8 million concurrent sessions and 500,000 new sessions per second. It has two 40G QSFP+ ports, four 10/25G SFP28 ports, four 10G SFP+ ports, eight SFP ports, sixteen Gigabit RJ-45 ports, two management ports and dual redundant power supplies.
Key Features
- 1 yr UTM Protection
- 80 Gbps firewall (1518-byte)
- 9.8 Gbps NGFW
- 2 x 40G QSFP+ + 4 x 25G SFP28
- 16 x 1G RJ-45 + 8 x SFP
- 2U, dual redundant PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 1100E
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec, IPv4, IPv6, SCTP, TCP/IP, UDP/IP
Remote Management: HTTP
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 100000, Concurrent sessions: 8000000, Concurrent SSL VPN users: 10000, Firewall policies: 100000, Gateway to gateway IPSec VPN Tunnels: 20000, New sessions per second: 500000, Number of FortiAP devices: 4096, Number of FortiSwitches: 128, Number of FortiToken devices: 20000, Number of registered FortiClients: 20000, SSL inspection concurrent sessions: 780000, Virtual domains: 10 (maximum 250)
Network Device: Application control (AVC) throughput: 26 Gbps, CAPWAP throughput (1444 byte, UDP): 43 Gbps, Firewall latency (64-byte UDP): 3 µs, Firewall throughput (1518-byte packet size): 80 Gbps, Firewall throughput (512-byte packet size): 80 Gbps, Firewall throughput (64-byte packet size): 45 Gbps, Firewall throughput: 67.5 Mpps, IPS throughput (enterprise traffic mix): 12.5 Gbps, IPv6 firewall throughput (86-byte packet size): 45 Gbps, NGFW throughput: 9.8 Gbps, SSL inspection throughput: 10 Gbps, SSL inspection throughput: 6500 connections per second, Threat protection throughput: 7.1 Gbps, VPN throughput (512-bit IPSec): 48 Gbps, VPN throughput (SSL): 8.4 Gbps
Features: Anti-malware protection, Antivirus analysis, CAPWAP support, Content filtering, Firewall protection, Intrusion Prevention System (IPS), Traffic shaping, VPN support, Web threat protection, Zero-touch provisioning (ZTP)
Bundled Services: 1 year UTM Protection Bundle
Connectivity
Interface Provided: 1 x console - RJ-45, 16 x 1000Base-T - RJ-45, 2 x 1000Base-T (management) - RJ-45, 2 x 40Gb Ethernet - QSFP+, 2 x USB 3.0 - Type A, 4 x 10Gb Ethernet - SFP+, 4 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 217 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP6
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Status Indicators: Alarm, HA, Power, Status
Dimensions and Weight
Height: 3.5 inch
Width: 17.4 inch
Depth: 17.6 inch
Weight: 24.91 lbs
Included Items
Included Accessories: 2 SX SFP transceivers
Warranty
Service Activation: No
