Product Information

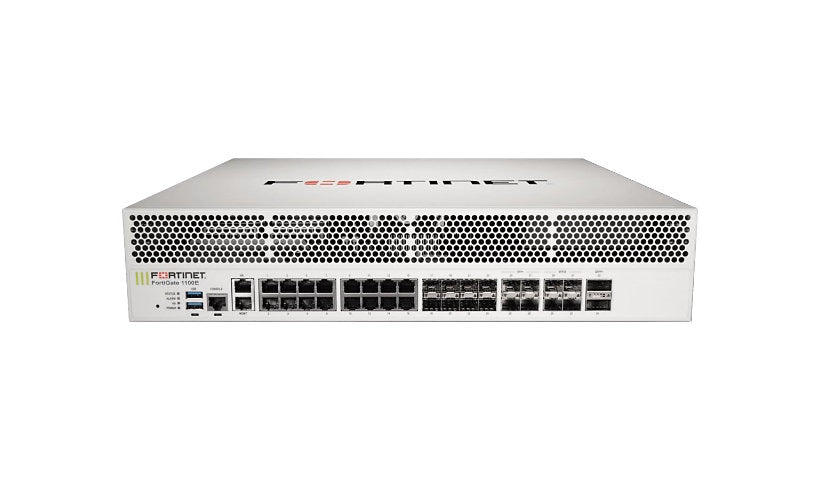

The Fortinet FortiGate 1100E is a 2U firewall for large enterprise edge, data center core and internal segmentation use. It is rated at 80 Gbps firewall (1518-byte UDP), 26 Gbps application control, 12.5 Gbps IPS, 9.8 Gbps NGFW and 10 Gbps SSL inspection, with up to 8 million concurrent TCP sessions and 500,000 new sessions per second. It has two 40G QSFP+ ports, four 10/25G SFP28 ports, four 10G SFP+ ports, eight SFP ports, sixteen Gigabit RJ-45 ports and two management ports, with two power supplies and about 217 W draw. This is the hardware without a service bundle.
Key Features
- 80 Gbps firewall (1518-byte UDP)
- 9.8 Gbps NGFW
- 8M concurrent sessions
- 2 x 40G QSFP+ + 4 x SFP28
- 16 x 1G RJ-45 + 8 x SFP
- 2U, dual power supplies
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 1100E
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IPv4, IPv6, SCTP
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 100000, Concurrent SSL VPN users: 10000, Concurrent TCP sessions: 8000000, Firewall policies: 100000, Gateway to gateway IPSec VPN Tunnels: 20000, New TCP sessions per second: 500000, Number of FortiAP devices: 4096, Number of FortiSwitches: 128, Number of FortiToken devices: 20000, Number of registered FortiClients: 20000, SSL connections per second: 6500, SSL inspection concurrent sessions: 780000, Virtual domains: 10 (maximum 250)
Network Device: Application control (AVC) throughput: 26 Gbps, CAPWAP throughput: 43 Gbps, Firewall latency (64-byte UDP): 3 µs, Firewall throughput (1518-byte UDP): 80 Gbps, Firewall throughput (512-byte UDP): 80 Gbps, Firewall throughput (64-byte UDP): 45 Gbps, Firewall throughput: 67.5 Mpps, IPS throughput (enterprise traffic mix): 12.5 Gbps, IPv6 firewall throughput (86-byte UDP): 45 Gbps, NGFW throughput: 9.8 Gbps, SSL inspection throughput: 10 Gbps, Threat protection throughput: 7.1 Gbps, VPN throughput (512-bit IPSec): 48 Gbps, VPN throughput (SSL): 8.4 Gbps
Operating System Edition: FortiOS
Features: Anti-malware protection, CAPWAP support, Checksum offload support, Firewall protection, High Availability, Intrusion Prevention System (IPS), IP tunnel acceleration, IPSec Virtual Private Network (VPN), Routing, Switching, Traffic shaping, VPN support, Web threat protection, Zero-touch provisioning (ZTP)
Connectivity
Interface Provided: 16 x 1000Base-T - RJ-45, 2 x 1000Base-T (management) - RJ-45, 2 x 40Gb Ethernet - QSFP+, 2 x USB 3.0 - Type A, 4 x 10Gb Ethernet - SFP+, 4 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Consumption Operational: 217 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP6
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Status Indicators: Alarm, HA, Power, Status
Dimensions and Weight
Height: 3.5 inch
Width: 17.4 inch
Depth: 17.6 inch
Weight: 24.91 lbs
Certifications and Listing
Compliant Standards: C-Tick, CB, cUL, FCC Part 15 A, ICSA Antivirus, ICSA Firewall certified, ICSA IPS, ICSA IPSec certified, ICSA SSL-VPN, IPv6 Ready, UL, USGv6, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
