Product Information

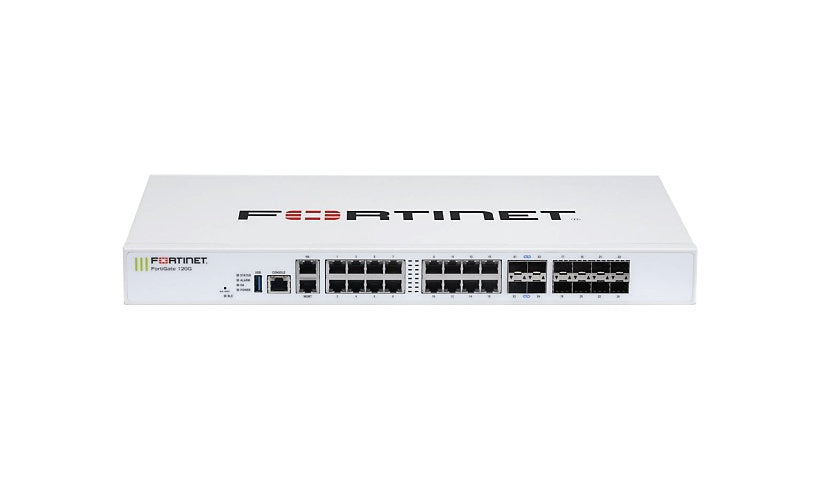

This FortiGate 120G bundle includes 1 year of FortiCare Premium support and 1 year of FortiGuard Unified Threat Protection. The 120G is a 1U firewall listed at 39 Gbps firewall (1518-byte UDP) and 6.7 Gbps application control, with 3 million concurrent sessions and 16,000 client to gateway IPsec tunnels. It has sixteen Gigabit RJ-45 ports, eight SFP ports, four 10G SFP+ FortiLink ports, HA and management ports, Bluetooth, USB 3.0 and dual redundant power supplies.
Key Features
- 1 yr FortiCare Premium + UTP
- 39 Gbps firewall (listed)
- 16 x 1G RJ-45 + 8 x SFP
- 4 x 10G SFP+ FortiLink
- 3M concurrent sessions
- 1U, dual redundant PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 120G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Bluetooth LE, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 16000, Concurrent sessions: 3000000, Concurrent SSL VPN users: 500, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum number of switches: 32, Maximum virtual domains: 10, New sessions per second: 140000, Number of FortiAP devices (tunnel): 64, Number of FortiAP devices: 128, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 315000, SSL inspection CPS: 2100, Virtual domains: 10
Wireless LAN: Bluetooth LE
Network Device: Application control throughput (HTTP 64K): 6.7 Gbps, CAPWAP Throughput (HTTP 64K): 35 Gbps, Firewall latency (64-byte UDP): 3.17 µs, Firewall throughput (1518-byte UDP): 39 Gbps, Firewall throughput (512-byte UDP): 39 Gbps, Firewall throughput (64-byte UDP): 28 Gbps, Firewall throughput: 42 Mpps, IPS throughput (enterprise traffic mix): 5.3 Gbps, NGFW throughput: 3.1 Gbps, SSL inspection throughput: 3 Gbps, Threat protection throughput: 2.8 Gbps, VPN throughput (512-bit IPSec): 35 Gbps, VPN throughput (SSL): 1.5 Gbps
Features: CAPWAP support, High Availability, Reset button, SSL inspection, Trusted Platform Module (TPM), VPN support
Bundled Services: 1 year FortiCare Premium Support + 1 year FortiGuard Unified Threat Protection (UTP)
Connectivity
Interface Provided: 1 x 1000Base-T (HA) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x USB 3.0 - Type A, 16 x 1000Base-T - RJ-45, 4 x 10GBase-X (FortiLink) - SFP+, 8 x 1000Base-X - SFP
Power
Device Type: Internal power supply
Required Voltage: AC 100-120 volt
Frequency: 50/60 hertz
Power Consumption Operational: 38 watt
Power Supplies Installed: 2
Redundant Power Supply: Yes
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Side to back airflow
Status Indicators: Alarm, HA, Power, Status
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 10 inch
Weight: 12.17 lbs
Included Items
Included Accessories: 2 mounting brackets, 4 rubber feet, 8 screws
Cables: 1 x network cable, 2 x power cable
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
