Product Information

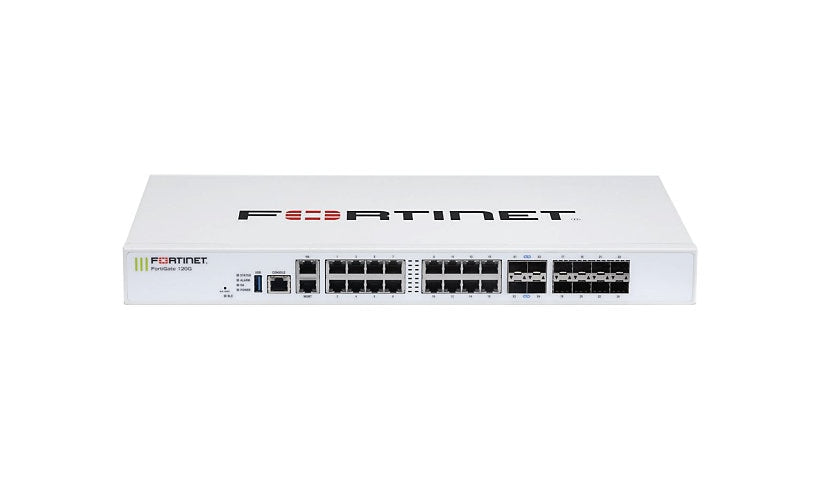

This FortiGate 121G bundle comes with 3 years of FortiCare Premium support and 3 years of FortiGuard Enterprise Protection. The 121G is the 120G series model with a 480 GB SSD for logs, rated at 39 Gbps firewall (1518-byte UDP) and 6.7 Gbps application control, with 3 million concurrent sessions and 16,000 client to gateway IPsec tunnels. It has sixteen Gigabit RJ-45 ports, eight SFP ports, four 10G SFP+ FortiLink ports, HA and management ports and Bluetooth LE.
Key Features
- 3 yr Premium + Enterprise Protection
- 480 GB SSD
- 39 Gbps firewall (listed)
- 16 x 1G RJ-45 + 8 x SFP
- 4 x 10G SFP+ FortiLink
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 121G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Capacity: Client to gateway IPSec VPN tunnels: 16000, Concurrent sessions: 3000000, Concurrent SSL VPN users: 500, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum number of FortiTokens: 5000, Maximum virtual domains: 10, New sessions per second: 140000, Number of FortiAP devices (tunnel mode): 64, Number of FortiAP devices: 128, SSL inspection concurrent sessions: 315000, SSL inspection CPS: 2100, Virtual domains: 10
Wireless LAN: Bluetooth LE
Network Device: Application control throughput: 6.7 Gbps, CAPWAP Throughput (HTTP 64K): 35 Gbps, Firewall latency (64-byte UDP): 3.17 µs, Firewall throughput (1518-byte packet size): 39 Gbps, Firewall throughput (512-byte packet size): 39 Gbps, Firewall throughput (64-byte packet size): 28 Gbps, Firewall throughput: 42 Mpps, IPS throughput: 5.3 Gbps, NGFW throughput: 3.1 Gbps, SSL inspection throughput: 3 Gbps, Threat protection throughput: 2.8 Gbps, VPN throughput (512-byte packet size): 35 Gbps, VPN throughput (SSL): 1.5 Gbps
Operating System Edition: FortiOS
Features: High Availability, Trusted Platform Module (TPM), Zero Trust Network Access (ZTNA)
Bundled Services: 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection
Connectivity
Ports: 16
Interface Provided: 1 x console - RJ-45, 1 x USB - Type A, 16 x 10/100/1000Base-T - RJ-45, 2 x 1000Base-T (management) - RJ-45, 4 x 10Gb Ethernet (HA) - SFP+, 4 x 10GBase-X (FortiLink) - SFP+
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Physical Characteristics
Form Factor: Desktop / rack mountable
Height (Rack Units): 1
Airflow Direction: Side to back airflow
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 10 inch
Weight: 12.17 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
