Product Information

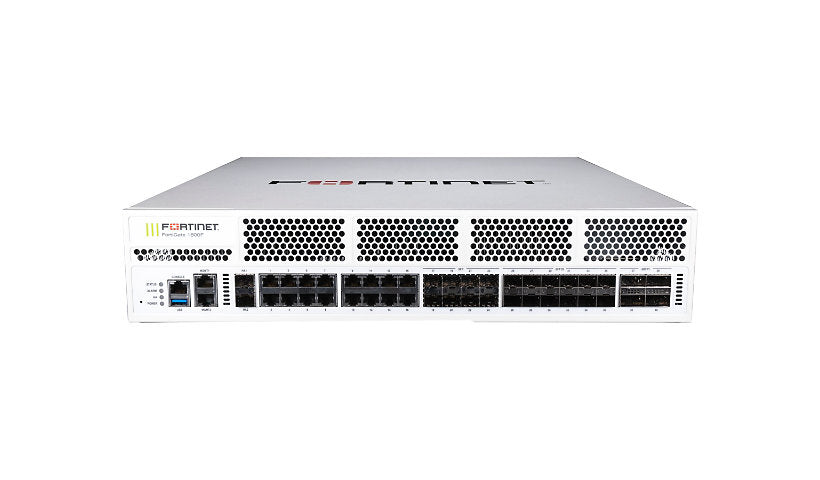

This FortiGate 1800F bundle comes with 3 years of FortiCare Premium support and 3 years of FortiGuard Enterprise Protection. The 1800F is a 2U firewall for large enterprises and data centers, rated at 140 Gbps firewall (1518-byte UDP), 34 Gbps application control and 11 Gbps NGFW, with up to 12 million TCP sessions and 750,000 new sessions per second. It has four 40G QSFP+ ports, twelve 1/10/25G SFP28 ports, eight SFP ports, sixteen Gigabit RJ-45 ports, two 10G HA ports, two management ports and redundant power.
Key Features
- 3 yr Premium + Enterprise Protection
- 140 Gbps firewall (1518-byte UDP)
- 12M TCP sessions
- 4 x 40G QSFP+
- 12 x 25G SFP28
- 2U, redundant power
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 1800F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, SCTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 100000, Concurrent SSL VPN users: 10000, Concurrent TCP sessions: 12000000, Firewall policies: 100000, Gateway to gateway IPSec VPN Tunnels: 20000, Maximum virtual domains: 250, New TCP sessions per second: 750000, Number of FortiAP devices (tunnel): 2048, Number of FortiAP devices: 4096, Number of FortiSwitches: 196, Number of FortiToken devices: 20000, SSL inspection concurrent sessions: 1300000, SSL inspection CPS: 9500, Virtual domains: 10
Network Device: Application control throughput: 34 Gbps, CAPWAP throughput: 26.5 Gbps, Firewall latency (64-byte UDP): 3.22 µs, Firewall throughput (1518-byte UDP): 198 Gbps, Firewall throughput (512-byte UDP): 197 Gbps, Firewall throughput (64-byte UDP): 140 Gbps, Firewall throughput: 210 Mpps, IPS throughput (enterprise traffic mix): 13 Gbps, IPv6 firewall throughput (1518-byte UDP): 198 Gbps, IPv6 firewall throughput (512-byte UDP): 197 Gbps, IPv6 firewall throughput (86-byte UDP): 140 Gbps, NGFW throughput (enterprise traffic mix): 11 Gbps, SSL inspection throughput: 17 Gbps, Threat protection throughput (enterprise traffic mix): 9.1 Gbps, VPN throughput (512-bit IPSec): 55 Gbps, VPN throughput (SSL): 11 Gbps
Features: CAPWAP support, IP tunnel acceleration, SSL inspection, VPN support
Bundled Services: 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0, 12 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 16 x 1000Base-T - RJ-45, 2 x 1000Base-T (management) - RJ-45, 2 x 1000Base-X/10GBase-X (High Availability) - SFP/SFP+, 4 x 40GBase-X - QSFP+, 8 x 1000Base-X - SFP
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 388.3 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Airflow Direction: Front and side to back
Status Indicators: Alarm, HA, Power, Status
Dimensions and Weight
Height: 3.5 inch
Width: 17.2 inch
Depth: 21.1 inch
Weight: 30.2 lbs
Included Items
Included Accessories: 2 x SR 10Gbps SFP+ transceivers
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
