Product Information

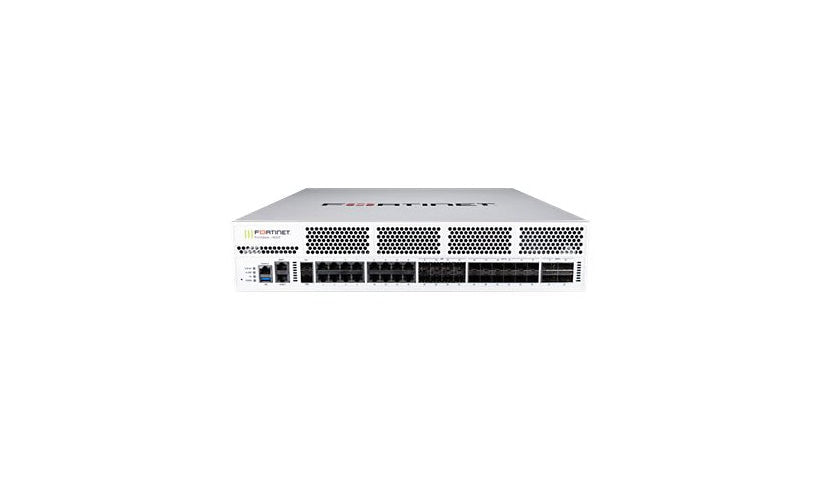

This FortiGate 1800F UTM bundle comes with 3 years of 24x7 FortiCare service and 3 years of FortiGuard. The 1800F is a 2U firewall for large enterprises and data centers, rated at 140 Gbps firewall (1518-byte UDP), 34 Gbps application control and 11 Gbps NGFW, with up to 12 million TCP sessions and 750,000 new sessions per second. It has four 40G QSFP+ ports, twelve 1/10/25G SFP28 ports, eight SFP ports, sixteen Gigabit RJ-45 ports, two 10G HA ports, two management ports and redundant power.
Key Features
- 3 yr 24x7 FortiCare + UTM
- 140 Gbps firewall (1518-byte UDP)
- 12M TCP sessions
- 4 x 40G QSFP+
- 12 x 25G SFP28
- 2U, redundant power
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 1800F
Product Type: Security appliance
Kit: UTM Bundle
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, SCTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, IPv4, IPv6
Encryption: 256-bit AES, SHA-1, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 100000, Concurrent SSL VPN users: 10000, Concurrent TCP sessions: 12000000, Firewall policies: 100000, Gateway to gateway IPSec VPN Tunnels: 20000, Maximum virtual domains: 250, New TCP sessions per second: 750000, Number of FortiAP devices (tunnel): 2048, Number of FortiAP devices: 4096, Number of FortiSwitches: 196, Number of FortiToken devices: 20000, SSL inspection concurrent sessions: 1300000, SSL inspection CPS: 9500, Virtual domains: 10
Network Device: Aggregate throughput (IPSec): 13 Gbps, Application control throughput: 34 Gbps, CAPWAP throughput: 26.5 Gbps, Firewall latency (64-byte UDP): 3.22 µs, Firewall throughput (1518-byte UDP): 140 Gbps, Firewall throughput (512-byte UDP): 197 Gbps, Firewall throughput (64-byte UDP): 198 Gbps, Firewall throughput: 210 Mpps, IPv6 firewall throughput (1518-byte UDP): 140 Gbps, IPv6 firewall throughput (512-byte UDP): 197 Gbps, IPv6 firewall throughput (64-byte UDP): 198 Gbps, NGFW throughput: 11 Gbps, SSL inspection throughput: 17 Gbps, Threat protection throughput: 9.1 Gbps, VPN throughput (512-bit IPSec): 55 Gbps, VPN throughput (SSL): 11 Gbps
Features: CAPWAP support, DDoS Protection, High Availability, SD-WAN support, Virtual Extensible LAN (VXLAN), VPN support, Zero-touch provisioning (ZTP)
Bundled Services: 3 years FortiCare 24X7 Service + 3 years FortiGuard
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 12 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 16 x 1000Base-T - RJ-45, 2 x 1000Base-T (management) - RJ-45, 2 x 1000Base-X/10GBase-X (High Availability) - SFP/SFP+, 4 x 40GBase-X - QSFP+, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 388.3 watt
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Status Indicators: Alarm, HA, Power, Status
Dimensions and Weight
Height: 3.5 inch
Width: 17.2 inch
Depth: 21.1 inch
Weight: 30.2 lbs
Included Items
Included Accessories: 2 x 10Gb Ethernet SR SFP+ transceiver
Warranty
Service Activation: No
