Product Information

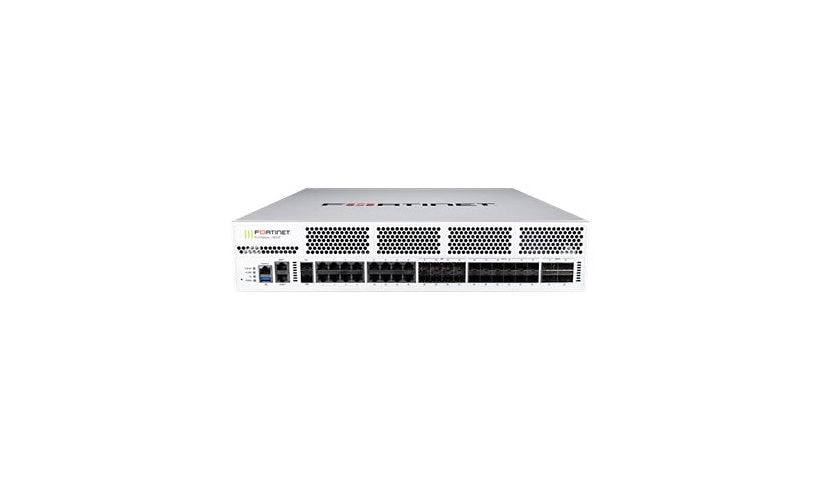

The Fortinet FortiGate 1800F is a 2U next generation firewall for large enterprise edge, data center core and internal segmentation use. It is listed at 198 Gbps firewall (1518-byte UDP), 34 Gbps application control, 13 Gbps IPS, 11 Gbps NGFW, 9.1 Gbps threat protection and 65 Gbps IPsec VPN, with up to 12 million concurrent TCP sessions, 750,000 new sessions per second and up to 250 virtual domains. It has four 40G QSFP+ ports, twelve 1/10/25G SFP28 ports, two 10G SFP+ ports, eight SFP ports, sixteen Gigabit RJ-45 ports and two management ports, with redundant power. This is the hardware without a service bundle.
Key Features
- 198 Gbps firewall (1518-byte UDP)
- 11 Gbps NGFW
- 12M concurrent sessions
- 4 x 40G QSFP+ + 12 x SFP28
- 16 x 1G RJ-45 + 8 x SFP
- 2U, redundant power
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 1800F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IPSec, IPv4, IPv6, SCTP
Remote Management: IPv4, IPv6
Encryption: SSL
Capacity: Client to gateway IPSec VPN tunnels: 100000, Concurrent SSL VPN users: 10000, Concurrent TCP sessions: 12000000, Firewall policies: 100000, Gateway to gateway IPSec VPN Tunnels: 20000, Maximum virtual domains: 250, New TCP sessions per second: 750000, Number of FortiSwitches: 128, Number of FortiToken devices: 20000, SSL inspection concurrent sessions: 1300000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 34 Gbps, Firewall latency (64-byte UDP): 4 µs, Firewall throughput (1518-byte UDP): 198 Gbps, Firewall throughput (512-byte UDP): 197 Gbps, Firewall throughput (64-byte UDP): 140 Gbps, Firewall throughput: 210 Mpps, IPS throughput: 13 Gbps, NGFW throughput: 11 Gbps, SSL inspection CPS: 9500, SSL inspection throughput: 17 Gbps, Threat protection throughput: 9.1 Gbps, VPN throughput (IPSec): 65 Gbps, VPN throughput (SSL): 11 Gbps
Operating System Edition: FortiOS
Features: CAPWAP support, DDoS Protection, Virtual Extensible LAN (VXLAN), VPN support
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 12 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 16 x 1000Base-T - RJ-45, 2 x 1000Base-T (management) - RJ-45, 2 x 10GBase-X - SFP+, 4 x 40GBase-X - QSFP+, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 543.6 watt
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Dimensions and Weight
Height: 3.5 inch
Width: 17.2 inch
Depth: 21.1 inch
Weight: 30.2 lbs
Included Items
Included Accessories: 2 x 10Gb Ethernet SR SFP+ transceiver
Certifications and Listing
Compliant Standards: C-Tick, cUL, FCC Part 15 A, SSL, UL, USGv6, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
