Product Information

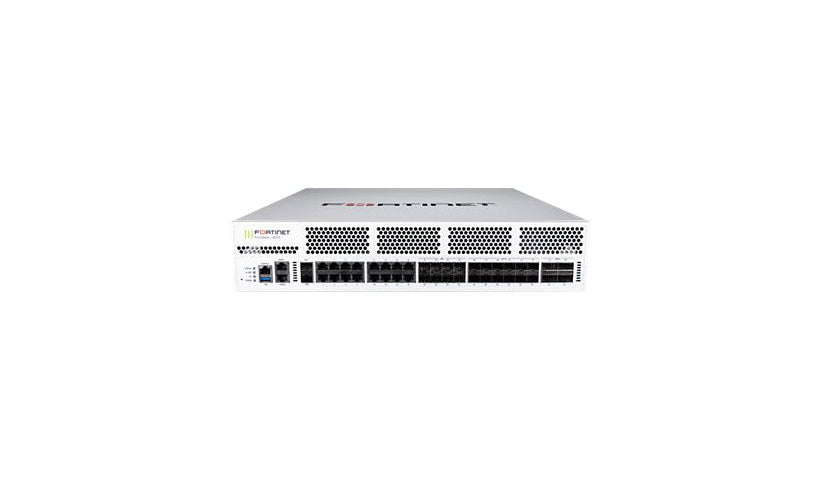

The Fortinet FortiGate 1801F is the 1800F model with 1 TB of onboard storage. It is a 2U next generation firewall for large enterprises and service providers, listed at 198 Gbps firewall (1518-byte UDP), 34 Gbps application control, 13 Gbps IPS, 11 Gbps NGFW and 65 Gbps IPsec VPN, with up to 12 million concurrent TCP sessions and 750,000 new sessions per second. Ports include four 40G QSFP+, twelve 1/10/25G SFP28, two 10G SFP+, eight SFP and sixteen Gigabit RJ-45, plus two management ports and redundant power. This is the hardware without a service bundle.
Key Features
- 1 TB onboard storage
- 198 Gbps firewall (1518-byte UDP)
- 13 Gbps IPS
- 750K new sessions per second
- 4 x 40G QSFP+ + 12 x SFP28
- 2U, redundant power
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 1801F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IPSec, IPv4, IPv6, SCTP
Remote Management: IPv4, IPv6
Encryption: SSL
Capacity: Client to gateway IPSec VPN tunnels: 100000, Concurrent SSL VPN users: 10000, Concurrent TCP sessions: 12000000, Firewall policies: 100000, Gateway to gateway IPSec VPN Tunnels: 20000, Maximum virtual domains: 250, New TCP sessions per second: 750000, Number of FortiSwitches: 128, Number of FortiToken devices: 20000, SSL inspection concurrent sessions: 1300000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 34 Gbps, Firewall latency (64-byte UDP): 4 µs, Firewall throughput (1518-byte UDP): 198 Gbps, Firewall throughput (512-byte UDP): 197 Gbps, Firewall throughput (64-byte UDP): 140 Gbps, Firewall throughput: 210 Mpps, IPS throughput: 13 Gbps, NGFW throughput: 11 Gbps, SSL inspection CPS: 9500, SSL inspection throughput: 17 Gbps, Threat protection throughput: 9.1 Gbps, VPN throughput (IPSec): 65 Gbps, VPN throughput (SSL): 11 Gbps
Operating System Edition: FortiOS
Features: CAPWAP support, DDoS Protection, Virtual Extensible LAN (VXLAN), VPN support
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 12 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 16 x 1000Base-T - RJ-45, 2 x 1000Base-T (management) - RJ-45, 2 x 10GBase-X - SFP+, 4 x 40GBase-X - QSFP+, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 543.6 watt
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Hard Drive Capacity: 1 TB
Hard Drive Form Factor: NVMe
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Installed Quantity: 2
Dimensions and Weight
Height: 3.5 inch
Width: 17.2 inch
Depth: 21.1 inch
Weight: 30.42 lbs
Included Items
Included Accessories: 2 x 10Gb Ethernet SR SFP+ transceiver
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
