Product Information

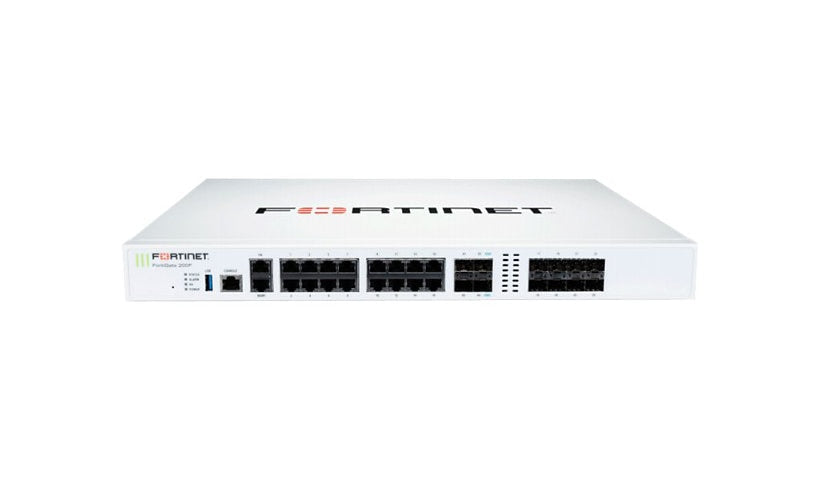

This is the TAA compliant FortiGate 200F with 1 year of 24x7 FortiCare support and 1 year of FortiGuard Unified Threat Protection. The 200F is a 1U next generation firewall and SD-WAN appliance rated at 27 Gbps firewall (1518-byte UDP), 13 Gbps application control, 5 Gbps IPS, 3.5 Gbps NGFW and 13 Gbps IPsec VPN, with up to 3 million TCP sessions. It has sixteen Gigabit RJ-45 ports, eight SFP ports, two 10G SFP+ ports, two FortiLink SFP+ ports, HA and management ports.
Key Features
- TAA compliant
- 1 yr 24x7 FortiCare + UTP
- 27 Gbps firewall (1518-byte UDP)
- 3.5 Gbps NGFW
- 16 x 1G RJ-45 + 8 x SFP
- 4 x 10G SFP+, 1U
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 200F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 16000, Concurrent SSL VPN users: 500, Concurrent TCP sessions: 3000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2500, Maximum virtual domains: 10, New TCP sessions per second: 280000, Number of FortiAP devices (tunnel): 128, Number of FortiAP devices: 256, Number of FortiSwitches: 64, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 300000, SSL inspection CPS: 3500, Virtual domains: 10
Network Device: Application control throughput: 13 Gbps, CAPWAP throughput: 20 Gbps, Firewall latency (64-byte UDP): 4.78 µs, Firewall throughput (1518-byte UDP): 27 Gbps, Firewall throughput (512-byte UDP): 27 Gbps, Firewall throughput (64-byte UDP): 11 Gbps, Firewall throughput: 16.5 Mpps, IPS throughput: 5 Gbps, NGFW throughput: 3.5 Gbps, SSL inspection throughput: 4 Gbps, Threat protection throughput: 3 Gbps, VPN throughput (512-bit IPSec): 13 Gbps, VPN throughput (SSL): 2 Gbps
Operating System Edition: FortiOS
Features: SD-WAN support, Trusted Platform Module (TPM), VPN support
Bundled Services: 1 year 24x7 FortiCare Support + 1 year FortiGuard Unified Threat Protection (UTP)
Connectivity
Interface Provided: 1 x 1000Base-T (HA) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x USB 3.0 - Type A, 16 x 1000Base-T - RJ-45, 2 x 10GBase-X - SFP+, 2 x FortiLink - SFP+, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 101.92 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP6XLite
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Alarm, HA, Power, Status
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 13.5 inch
Weight: 9.92 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
