Product Information

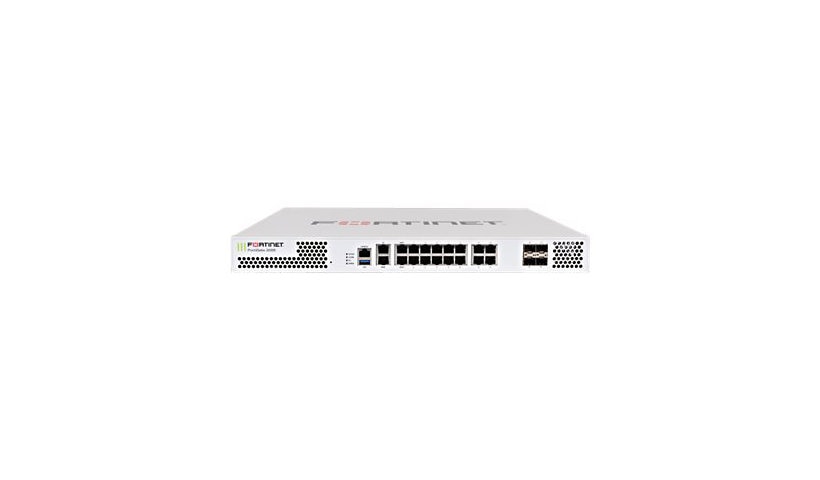

This FortiGate 201E UTM bundle includes FortiCare 24x7 Comprehensive support and FortiGuard services for 1 year. The 201E is a firewall with a 480 GB drive, rated at 20 Gbps firewall (1518-byte UDP), 2.2 Gbps IPS, 1.8 Gbps NGFW, 1.2 Gbps threat prevention and 9 Gbps IPsec VPN, with up to 2 million TCP sessions and 135,000 new sessions per second. It has fourteen Gigabit RJ-45 ports, two WAN ports, two management ports, four SFP ports, a console and USB 2.0.
Key Features
- 1 yr 24x7 FortiCare + FortiGuard
- 20 Gbps firewall (1518-byte UDP)
- 1.8 Gbps NGFW
- 2M TCP sessions
- 14 x 1G + 2 WAN + 4 x SFP
- 480 GB storage
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 201E
Product Type: Security appliance
Kit: UTM Bundle
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Encryption: SSL
Capacity: Client to gateway IPSec VPN tunnels: 5000, Concurrent SSL VPN users: 300, Concurrent TCP sessions: 2000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, New sessions per second: 135000, Number of FortiAP devices: 128, Number of FortiClient devices: 600, Number of FortiToken devices: 1000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 3.5 Gbps, CAPWAP throughput: 1.5 Gbps, Firewall latency (64-byte UDP): 3 µs, Firewall throughput (1518-byte UDP): 20 Gbps, Firewall throughput (512-byte UDP): 20 Gbps, Firewall throughput (64-byte UDP): 9 Gbps, Firewall throughput: 13.5 Mpps, IPS throughput (HTTP): 6 Gbps, IPS throughput: 2.2 Gbps, NGFW throughput: 1.8 Gbps, SSL inspection throughput: 1 Gbps, Threat prevention throughput: 1.2 Gbps, VPN throughput (512-bit IPSec): 9 Gbps, VPN throughput (SSL): 300 Mbps
Features: Anti-virus protection, Content filtering, Firewall protection, High Availability, Intrusion Prevention System (IPS), Manageable, VPN support
Bundled Services: 1 year FortiCare 24X7 Comprehensive Support + 1 year FortiGuard
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 2.0 - Type A, 14 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x 1000Base-T (management) - RJ-45, 4 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP6Lite
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Physical Characteristics
Form Factor: External
Height (Rack Units): 2
Installed Quantity: 1
Dimensions and Weight
Weight: 12.13 lbs
Included Items
Included Accessories: 2 rack mount brackets, 4 rubber feet
Cables: 1 x console cable, 1 x network cable
Certifications and Listing
Compliant Standards: BSMI, CB, cUL, FCC Part 15 B Class A, ICSA Antivirus, ICSA Firewall certified, ICSA IPSec certified, RCM, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
