Product Information

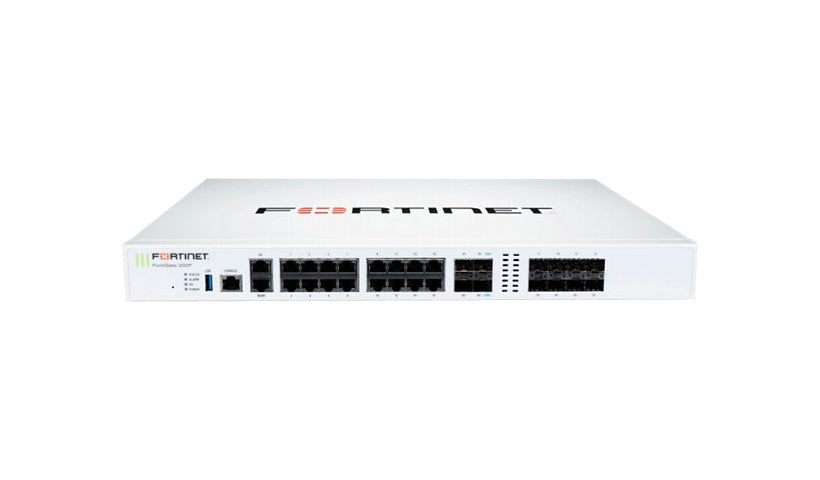

This FortiGate 201F bundle includes FortiCare 24x7 Comprehensive support and FortiGuard services for 3 years. The 201F is the 200F model with a 480 GB SSD, a 1U firewall rated at 27 Gbps firewall (1518-byte UDP), 13.5 Gbps application control, 5 Gbps IPS, 3.5 Gbps NGFW and 13 Gbps IPsec VPN, with up to 3 million TCP sessions. It has sixteen Gigabit RJ-45 ports, eight SFP ports, two 10G SFP+ ports, two FortiLink SFP+ ports, HA and management ports.
Key Features
- 3 yr 24x7 FortiCare + FortiGuard
- 480 GB SSD
- 27 Gbps firewall (1518-byte UDP)
- 3.5 Gbps NGFW
- 16 x 1G RJ-45 + 8 x SFP
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 201F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec, TCP/IP, UDP/IP
Remote Management: HTTP
Encryption: SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 16000, Concurrent SSL VPN users: 500, Concurrent TCP sessions: 3000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2500, New TCP sessions per second: 280000, Number of FortiAP devices (tunnel mode): 128, Number of FortiAP devices: 256, Number of FortiSwitches: 64, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 300000, SSL inspection CPS: 3500, Virtual domains: 10
Network Device: Application control (AVC) throughput: 13.5 Gbps, CAPWAP throughput: 20 Gbps, Firewall latency (64-byte UDP): 4.78 µs, Firewall throughput (1518-byte UDP): 27 Gbps, Firewall throughput (512-byte UDP): 27 Gbps, Firewall throughput (64-byte UDP): 11 Gbps, Firewall throughput: 16.5 Mpps, IPS throughput (HTTP): 4 Gbps, IPS throughput: 5 Gbps, NGFW throughput: 3.5 Gbps, Threat protection throughput: 3 Gbps, VPN throughput (512-bit IPSec): 13 Gbps, VPN throughput (SSL): 2 Gbps
Operating System Edition: FortiOS
Features: Anti-malware protection, Anti-virus protection, CAPWAP support, Checksum offload support, Firewall protection, High Availability, Intrusion Prevention System (IPS), IPSec passthrough, Manageable, Traffic shaping, Trusted Platform Module (TPM), URL filtering, VPN support
Bundled Services: 3 years FortiCare 24X7 Comprehensive Support + 3 years FortiGuard
Connectivity
Interface Provided: 1 x 1000Base-T (HA) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x USB 2.0 - Type A, 16 x 1000Base-T - RJ-45, 2 x 10Gb Ethernet - SFP+, 2 x FortiLink - SFP+, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP6XLite
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 13.5 inch
Weight: 10.14 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
