Product Information

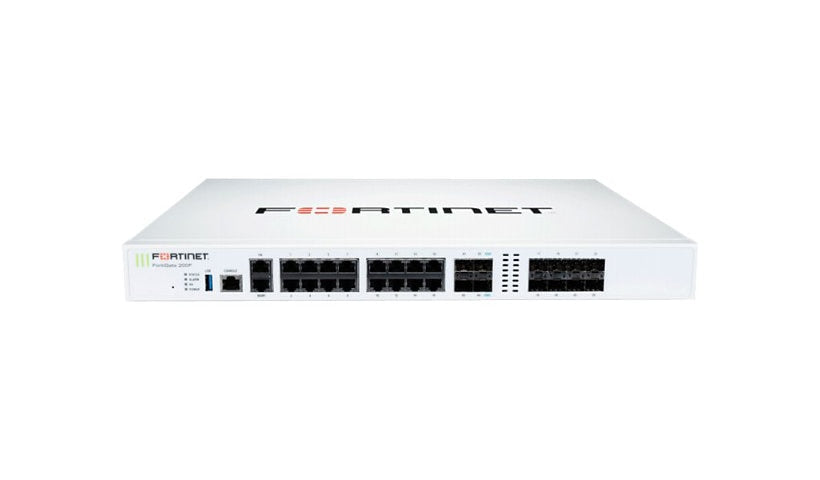

The Fortinet FortiGate 201F is the 200F model with a 480 GB SSD for local logs, a 1U firewall rated at 27 Gbps firewall (1518-byte UDP), 13 Gbps application control, 5 Gbps IPS, 3.5 Gbps NGFW and 13 Gbps IPsec VPN, with up to 3 million TCP sessions and 280,000 new sessions per second. It has sixteen Gigabit RJ-45 ports, eight SFP ports, two 10G SFP+ ports, two FortiLink SFP+ ports, HA and management ports, USB 3.0 and an optional redundant power supply.
Key Features
- 480 GB SSD
- 27 Gbps firewall (1518-byte UDP)
- 3.5 Gbps NGFW
- 16 x 1G RJ-45 + 8 x SFP
- 4 x 10G SFP+
- 1U, redundant PSU optional
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 201F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 16000, Concurrent SSL VPN users: 500, Concurrent TCP sessions: 3000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2500, Maximum virtual domains: 10, New TCP sessions per second: 280000, Number of FortiAP devices (tunnel): 128, Number of FortiAP devices: 256, Number of FortiSwitches: 64, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 300000, SSL inspection CPS: 3500, Virtual domains: 10
Network Device: Application control throughput: 13 Gbps, CAPWAP throughput: 20 Gbps, Firewall latency (64-byte UDP): 4.78 µs, Firewall throughput (1518-byte UDP): 27 Gbps, Firewall throughput (512-byte UDP): 27 Gbps, Firewall throughput (64-byte UDP): 11 Gbps, Firewall throughput: 16.5 Mpps, IPS throughput: 5 Gbps, NGFW throughput: 3.5 Gbps, SSL inspection throughput: 4 Gbps, Threat protection throughput: 3 Gbps, VPN throughput (512-bit IPSec): 13 Gbps, VPN throughput (SSL): 2 Gbps
Operating System Edition: FortiOS
Features: SD-WAN support, Trusted Platform Module (TPM), VPN support
Connectivity
Interface Provided: 1 x 1000Base-T (HA) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x USB 3.0 - Type A, 16 x 1000Base-T - RJ-45, 2 x 10GBase-X - SFP+, 2 x FortiLink - SFP+, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 104.52 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP6XLite
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 13.5 inch
Weight: 10.14 lbs
Warranty
Service Activation: No
